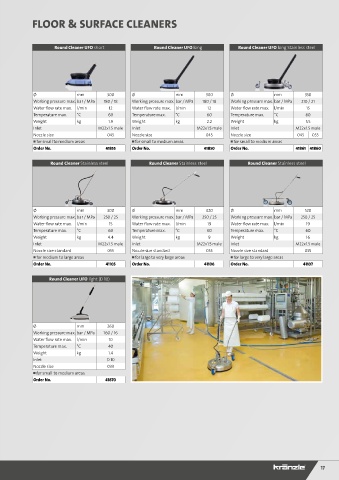

Page 17 - Kraenzle_tillbehor_2021
P. 17
FLOOR & SURFACE CLEANERS
Round Cleaner UFO short Round Cleaner UFO long Round Cleaner UFO long Stainless steel
Ø mm 300 Ø mm 300 Ø mm 350
Working pressure max. bar / MPa 180 / 18 Working pressure max. bar / MPa 180 / 18 Working pressure max. bar / MPa 210 / 21
Water flow rate max. l/min 12 Water flow rate max. l/min 12 Water flow rate max. l/min 15
Temperature max. °C 60 Temperature max. °C 60 Temperature max. °C 60
Weight kg 1.9 Weight kg 2.2 Weight kg 5.5
Inlet M22x1.5 male Inlet M22x1.5 male Inlet M22x1.5 male
Nozzle size 045 Nozzle size 045 Nozzle size 045 055
for small to medium areas for small to medium areas for small to medium areas
Order No. 41855 Order No. 41850 Order No. 41861 41860
Round Cleaner Stainless steel Round Cleaner Stainless steel Round Cleaner Stainless steel
Ø mm 300 Ø mm 420 Ø mm 520
Working pressure max. bar / MPa 250 / 25 Working pressure max. bar / MPa 250 / 25 Working pressure max. bar / MPa 250 / 25
Water flow rate max. l/min 15 Water flow rate max. l/min 19 Water flow rate max. l/min 19
Temperature max. °C 60 Temperature max. °C 60 Temperature max. °C 60
Weight kg 4.4 Weight kg 9 Weight kg 16
Inlet M22x1.5 male Inlet M22x1.5 male Inlet M22x1.5 male
Nozzle size standard 055 Nozzle size standard 055 Nozzle size standard 055
for medium to large areas for large to very large areas for large to very large areas
Order No. 41105 Order No. 41106 Order No. 41107
Round Cleaner UFO light (D 10)
Ø mm 260
Working pressure max. bar / MPa 160 / 16
Water flow rate max. l/min 10
Temperature max. °C 40
Weight kg 1.4
Inlet D 10
Nozzle size 033
for small to medium areas
Order No. 41870
