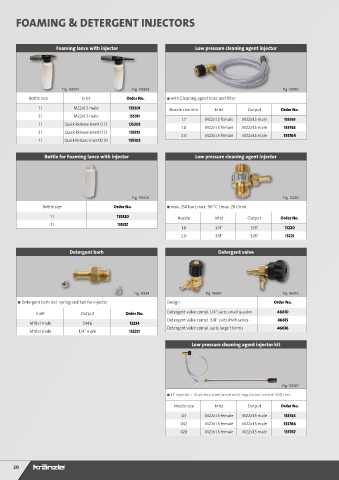

Page 20 - Kraenzle_tillbehor_2021

FOAMING & DETERGENT INJECTORS

Foaming lance with injector Low pressure cleaning agent injector

Fig. 135301 Fig. 135303 Fig. 133761
Bottle size Inlet Order No. ■ with Cleaning agent hose and filter
1 l M22x1.5 male 135301 Nozzle size mm Inlet Output Order No.
2 l M22x1.5 male 135311
1.7 M22x1.5 female M22x1.5 male 133761
1 l Quick-Release insert D 12 135303
1.8 M22x1.5 female M22x1.5 male 133763
2 l Quick-Release insert D 12 135313
2.0 M22x1.5 female M22x1.5 male 133764
1 l Quick-Release insert D 10 135302

Bottle for Foaming lance with injector Low pressure cleaning agent injector

Fig. 135320 FIg. 13220
Bottle size Order No. ■ max. 250 bar | max. 90 °C | max. 20 l/min
1 l 135320 Nozzle Inlet Output Order No.
2 l 135321
1.8 3/8" 3/8" 13220
2.0 3/8" 3/8" 13221

Detergent barb Detergent valve

Fig. 13234 Fig. 46610 Fig. 46616
■ Detergent barb incl. spring and ball for injector Design Order No.
Inlet Output Order No. Detergent valve compl. 1/4" suits small quadro 46610
Detergent valve compl. 3/8" suits Profi series 46615
M10x1 male DN 6 13234
Detergent valve compl. suits large therms 46616
M10x1 male 1/4" male 132331
Low pressure cleaning agent injector kit

Fig. 133767
■ LP injector + Stainless steel lance with regulation control 500 mm
Nozzle size Inlet Output Order No.
03 M22x1.5 female M22x1.5 male 133765
042 M22x1.5 female M22x1.5 male 133766
028 M22x1.5 female M22x1.5 male 133767

20
