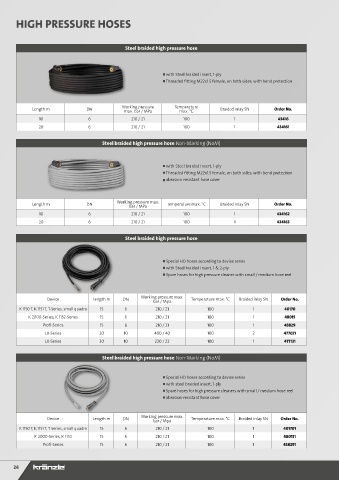

Page 24 - Kraenzle_tillbehor_2021

HIGH PRESSURE HOSES

Steel braided high pressure hose

with Steel braided insert, 1-ply
Threaded fitting M22x1.5 female, on both sides, with bend protection

Length m DN Working pressure Temperature Braided inlay SN Order No.
max. °C
max. bar / MPa
10 6 210 / 21 100 1 43416
20 6 210 / 21 100 1 434161

Steel braided high pressure hose Non-Marking (NoM)

with Steel braided insert, 1-ply
Threaded fitting M22x1.5 female, on both sides, with bend protection
abrasion-resistant hose cover

Length m DN Working pressure max. Temperature max. °C Braided inlay SN Order No.
bar / MPa
10 6 210 / 21 100 1 434162
20 6 210 / 21 100 1 434163

Steel braided high pressure hose

Special HD hoses according to device series
with Steel braided insert, 1 & 2-ply
Spare hoses for high pressure cleaner with small / medium hose reel

Working pressure max.
Device Length m DN Temperature max. °C Braided inlay SN Order No.
bar / Mpa
K 1150 T, K 1151 T, T-Series, small quadro 15 6 210 / 21 100 1 40170
K 2000-Series, K 1152-Series 15 6 210 / 21 100 1 48015
Profi-Series 15 6 210 / 21 100 1 43829
LX-Series 20 10 400 / 40 100 2 477021
LX-Series 30 10 220 / 22 100 1 477131

Steel braided high pressure hose Non-Marking (NoM)

Special HD hoses according to device series
with steel braided insert, 1-ply
Spare hoses for high pressure cleaners with small / medium hose reel
abrasion-resistant hose cover

Device Length m DN Working pressure max. Temperature max. °C Braided inlay SN Order No.
bar / Mpa
K 1150 T, K 1151 T, T-Series, small quadro 15 6 210 / 21 100 1 401701
K 2000-Series, K 1152 15 6 210 / 21 100 1 480151
Profi-Series 15 6 210 / 21 100 1 438291

24
