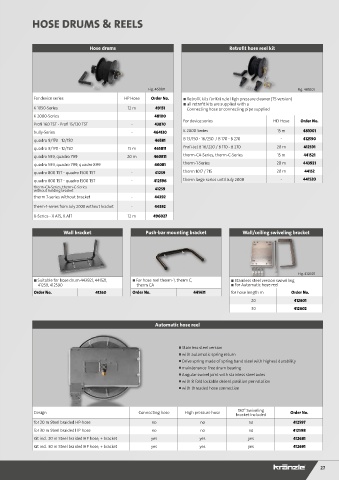

Page 27 - Kraenzle_tillbehor_2021

HOSE DRUMS & REELS

Hose drums Retrofit hose reel kit

Fig. 460811 Fig. 481001
For device series HP Hose Order No. ■ Retrofit kits for Kränzle High pressure cleaner (TS version)
■ all retrofit kits are supplied with a
K 1050-Series 12 m 49151 Connecting hose or connecting pipe supplied
K 2000-Series - 48100
For device series HD Hose Order No.
Profi 160 TST - Profi 15/120 TST - 43870
bully-Series - 464130 K 2000 Series 15 m 481001
quadro 9/170 - 12/150 - 46581 B 13/150 - 16/250 / B 170 - B 270 - 412590
quadro 9/170 - 12/150 15 m 465811 Profi-Jet B 16/220 / B 170 - B 270 20 m 412591
quadro 599, quadro 799 20 m 460811 therm-CA-Series, therm-C-Series 15 m 441521
quadro 599, quadro 799, quadro 899 - 46081 therm-1-Series 20 m 443921
quadro 800 TST - quadro 1500 TST - 41259 therm 1017 / 715 20 m 44152
quadro 800 TST - quadro 1500 TST - 412596 therm large series until July 2008 - 441520
therm-CA-Series, therm-C-Series - 41259
without holding bracket
therm 7-series without bracket - 44392

therm-1-series from July 2008 without bracket - 44392
X-Series - X A15, X A17 12 m 496027

Wall bracket Push-bar mounting bracket Wall/ceiling swiveling bracket

Fig. 412601
■ Suitable for hose drum 443921, 441521, ■ For hose reel therm-1, therm C, ■ Stainless steel version swivelling
41259, 412590 therm CA ■ For Automatic hose reel
Order No. 41260 Order No. 441431 for hose length m Order No.
20 412601
30 412602

Automatic hose reel

Stainless steel version
with automatic spring return
Drive spring made of spring band steel with highest durability
maintenance-free drum bearing
Angular swivel joint with stainless steel axles
with 8-fold lockable detent position per rotation
with threaded hose connection

180° Swiveling
Design Connecting hose High pressure hose bracket included Order No.
for 20 m Steel braided HP-hose no no no 412597
for 30 m Steel braided HP-hose no no no 412598
Kit incl. 20 m Steel braided HP hose, + bracket yes yes yes 412681
Kit incl. 30 m Steel braided HP hose, + bracket yes yes yes 412691
