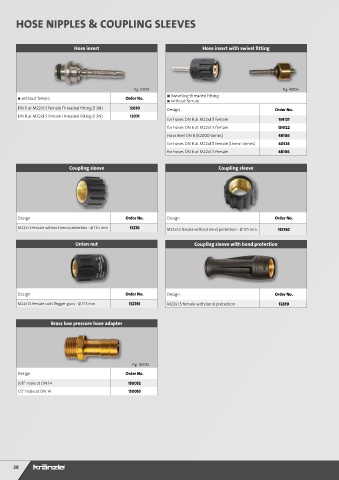

HOSE NIPPLES & COUPLING SLEEVES

Hose insert Hose insert with swivel fitting

Fig. 12030 Fig. 48106
■ Swiveling threaded fitting
■ without ferrule Order No.
■ without ferrule
DN 6 at M22x1.5 female Threaded fitting (1 SN) 12030 Design Order No.
DN 8 at M22x1.5 female Threaded fitting (1 SN) 12031
for hoses DN 8 at M22x1.5 female 134121
for hoses DN 6 at M22x1.5 female 134122
Hose Reel DN 6 (K2000-Series) 48106
for hoses DN 8 at M22x1.5 female (therm-Series) 40324
for hoses DN 6 at M22x1.5 female 48106

Coupling sleeve Coupling sleeve

Design Order No. Design Order No.
M22x1.5 female without bend protection - Ø 13.5 mm 13276 M22x1.5 female without bend protection - Ø 17.5 mm 132762

Union nut Coupling sleeve with bend protection

Design Order No. Design Order No.
M22x1.5 female suits Trigger guns - Ø 17.5 mm 132761 M22x1.5 female with bend protection 13289

Brass low pressure hose adapter

Fig. 150052
Design Order No.
3/8" male at DN 14 150052
1/2" male at DN 14 150053
