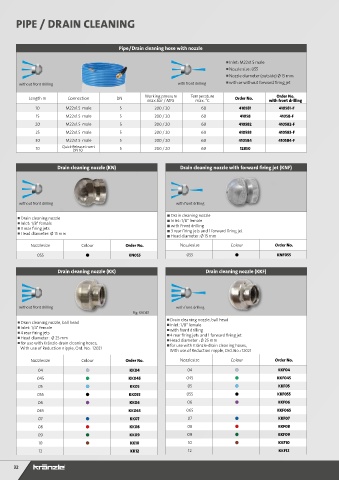

Page 32 - Kraenzle_tillbehor_2021

PIPE / DRAIN CLEANING

Pipe / Drain cleaning hose with nozzle

Inlet: M22x1.5 male
Nozzle size: 055
Nozzle diameter (outside) Ø 15 mm
without front drilling with front drilling with or without forward firing jet
Working pressure Temperature Order No.
Length m Connection DN max.bar / MPa max. °C Order No. with front drilling
10 M22x1.5 male 5 200 / 20 60 410581 410581-F
15 M22x1.5 male 5 200 / 20 60 41058 41058-F
20 M22x1.5 male 5 200 / 20 60 410582 410582-F
25 M22x1.5 male 5 200 / 20 60 410583 410583-F
30 M22x1.5 male 5 200 / 20 60 410584 410584-F
10 Quick-Release insert 5 200 / 20 60 12850
DN 10

Drain cleaning nozzle (KN) Drain cleaning nozzle with forward firing jet (KNF)

without front drilling with front drilling

■ Drain cleaning nozzle
Drain cleaning nozzle ■ Inlet: 1/8" female
Inlet: 1/8" female ■ with Front drilling
3 rear firing jets ■ 3 rear firing jets and 1 forward firing jet
Head diameter: Ø 15 mm
■ Head diameter: Ø 15 mm
Nozzlesize Colour Order No. Nozzlesize Colour Order No.
055 ● ● KN055 055 ● ● KNF055

Drain cleaning nozzle (KK) Drain cleaning nozzle (KKF)

without front drilling with front drilling
Fig. KK045
Drain cleaning nozzle, ball head
Drain cleaning nozzle, ball head Inlet: 1/8" female
Inlet: 1/4" female with Front drilling
4 rear firing jets 4 rear firing jets and 1 forward firing jet
Head diameter : Ø 25 mm Head diameter : Ø 25 mm
for use with Kränzle-drain cleaning hoses, for use with Kränzle-drain cleaning hoses,
With use of Reduction nipple, Ord. No.: 12021
With use of Reduction nipple, Ord. No.: 12021
Nozzlesize Colour Order No. Nozzlesize Colour Order No.
04 ● ● KK04 04 ● ● KKF04
045 ● ● KK045 045 ● ● KKF045
05 ● ● KK05 05 ● ● KKF05
055 ● ● KK055 055 ● ● KKF055
06 ● ● KK06 06 ● ● KKF06
065 KK065 065 KKF065
07 ● ● KK07 07 ● ● KKF07
08 ● ● KK08 08 ● ● KKF08
09 ● ● KK09 09 ● ● KKF09
10 ● ● KK10 10 ● ● KKF10
12 KK12 12 KKF12
