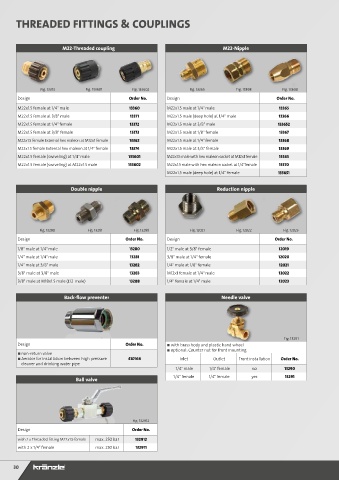

Page 30 - Kraenzle_tillbehor_2021

THREADED FITTINGS & COUPLINGS

M22-Threaded coupling M22-Nipple

Fig. 13373 Fig. 133601 Fig. 133602 Fig. 13365 Fig. 13368 Fig. 133651
Design Order No. Design Order No.
M22x1.5 female at 1/4" male 13360 M22x1.5 male at 1/4" male 13365
M22x1.5 female at 3/8" male 13371 M22x1.5 male (deep hole) at 1/4" male 13366
M22x1.5 female at 1/4" female 13372 M22x1.5 male at 3/8" male 133652
M22x1.5 female at 3/8" female 13373 M22x1.5 male at 1/8" female 13367
M22x1.5 female External hex maleon at M12x1 female 13362 M22x1.5 male at 1/4" female 13368
M22x1.5 female External hex maleon at 1/4" female 13374 M22x1.5 male at 3/8" female 13369
M22x1.5 female (swiveling) at 1/4" male 133601 M22x1.5 male with hex maleon socket at M12x1 female 13363
M22x1.5 female (swiveling) at M22x1.5 male 133602 M22x1.5 male with hex maleon socket at 1/4"female 13370
M22x1.5 male (deep hole) at 1/4" female 133651

Double nipple Reduction nipple

Fig. 13280 Fig. 13281 Fig. 13288 Fig. 12021 Fig. 12022 Fig. 12023
Design Order No. Design Order No.
1/8" male at 1/4" male 13280 1/2" male at 3/8" female 12019
1/4" male at 1/4" male 13281 3/8" male at 1/4" female 12020
1/4" male at 3/8" male 13282 1/4" male at 1/8" female 12021
3/8" male at 3/8" male 13283 M12x1 female at 1/4" male 12022
3/8" male at M18x1.5 male (L12 male) 13288 1/4" female at 1/4" male 12023

Back-flow preventer Needle valve

Fig. 13291
Design Order No. ■ with brass body and plastic hand wheel
■ optional: Counter nut for front mounting
■ non-return valve
■ Aerator for installation between high-pressure 410164 Inlet Outlet Front installation Order No.
cleaner and drinking water pipe
1/4" male 1/4" female no 13290
1/4" female 1/4" female yes 13291
Ball valve

Fig. 132912
Design Order No.
with 2 x Threaded fitting M22x1.5 female max. 250 bar 132912
with 2 x 1/4" female max. 250 bar 132911
