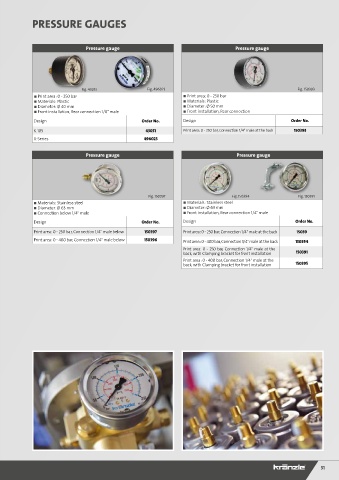

PRESSURE GAUGES

Pressure gauge Pressure gauge

Fig. 43051 Fig. 496023 Fig. 150393
■ Print area: 0 - 250 bar ■ Print area: 0 - 250 bar
■ Materials: Plastic ■ Materials: Plastic
■ Diameter: Ø 40 mm ■ Diameter: Ø 50 mm
■ Front installation, Rear connection 1/8" male ■ Front installation, Rear connection
Design Order No. Design Order No.
K 105 43051 Print area: 0 - 250 bar, Connection 1/4" male at the back 150393
X-Series 496023

Pressure gauge Pressure gauge

Fig. 150397 Fig. 150394 Fig. 150391
■ Materials: Stainless steel ■ Materials: Stainless steel
■ Diameter: Ø 63 mm ■ Diameter: Ø 63 mm
■ Connection below 1/4" male ■ Front installation, Rear connection 1/4" male
Design Order No. Design Order No.
Print area: 0 - 250 bar, Connection 1/4" male below 150397 Print area: 0 - 250 bar, Connection 1/4" male at the back 15039
Print area: 0 - 400 bar, Connection 1/4" male below 150396 Print area: 0 - 400 bar, Connection 1/4" male at the back 150394
Print area: 0 - 250 bar, Connection 1/4" male at the
back, with Clamping bracket for front installation 150391
Print area: 0 - 400 bar, Connection 1/4" male at the
back, with Clamping bracket for front installation 150395

31
