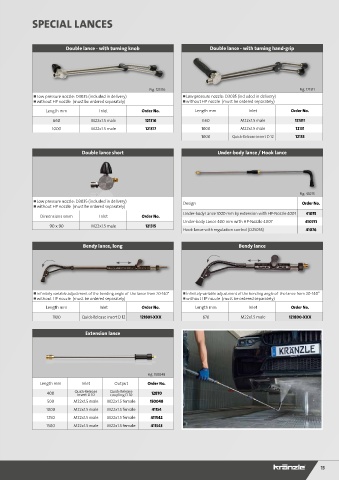

SPECIAL LANCES

Double lance - with turning knob Double lance - with turning hand-grip

Fig. 121316 Fig. 121311
Low pressure nozzle: D3035 (included in delivery) Low pressure nozzle: D3035 (included in delivery)
without HP nozzle (must be ordered separately) without HP nozzle (must be ordered separately)
Length mm Inlet Order No. Length mm Inlet Order No.
660 M22x1.5 male 121316 660 M22x1.5 male 121311
1000 M22x1.5 male 121317 1000 M22x1.5 male 12131
1000 Quick-Release insert D 12 12133

Double lance short Under-body lance / Hook lance

Fig. 41075
Low pressure nozzle: D3035 (included in delivery) Design Order No.
without HP nozzle (must be ordered separately)
Under-body Lance 1000 mm by extension with HP-Nozzle 4007 41075
Dimensions smm Inlet Order No.
Under-body Lance 400 mm with HP-Nozzle 4007 410751
90 x 90 M22x1.5 male 121315
Hook lance with regulation control (D25055) 41076

Bendy lance, long Bendy lance

infinitely variable adjustment of the bending angle of the lance from 20-140° infinitely variable adjustment of the bending angle of the lance from 20-140°
without HP nozzle (must be ordered separately) without HP nozzle (must be ordered separately)
Length mm Inlet Order No. Length mm Inlet Order No.
1100 Quick-Release insert D 12 121801-XXX 670 M22x1.5 male 121800-XXX

Extension lance

Fig. 150048
Length mm Inlet Output Order No.

400 Quick-Release Quick-Release 12870
insert D 10
coupling D 10
500 M22x1.5 male M22x1.5 female 150048
1000 M22x1.5 male M22x1.5 female 41154
1250 M22x1.5 male M22x1.5 female 411542
1500 M22x1.5 male M22x1.5 female 411543
