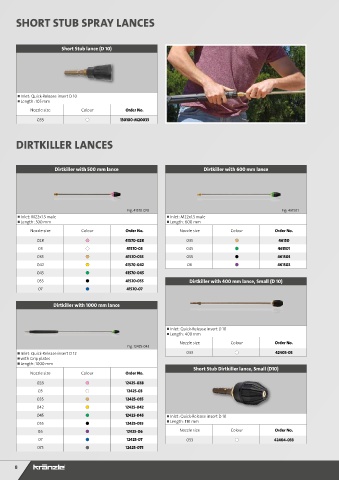

Page 8 - Kraenzle_tillbehor_2021

SHORT STUB SPRAY LANCES

Short Stub lance (D 10)

Inlet: Quick-Release insert D 10
Length: 105 mm
Nozzle size Colour Order No.
033 ● ● 130100-M20033

DIRTKILLER LANCES

Dirtkiller with 500 mm lance Dirtkiller with 600 mm lance

Fig. 41570-028 Fig. 461501
Inlet: M22x1.5 male Inlet: M22x1.5 male
Length: 500 mm Length: 600 mm
Nozzle size Colour Order No. Nozzle size Colour Order No.
028 ● ● 41570-028 035 ● ● 46150
03 ● ● 41570-03 045 ● ● 461501
035 ● ● 41570-035 055 ● ● 461503
042 ● ● 41570-042 06 ● ● 461502
045 ● ● 41570-045
055 ● ● 41570-055 Dirtkiller with 400 mm lance, Small (D 10)
07 ● ● 41570-07

Dirtkiller with 1000 mm lance

Inlet: Quick-Release insert D 10
Length: 400 mm
Nozzle size Colour Order No.
Fig. 12425-045
Inlet: Quick-Release insert D 12 033 ● ● 42403-03
with Grip plates
Length: 1000 mm
Short Stub Dirtkiller lance, Small (D10)
Nozzle size Colour Order No.
028 ● ● 12425-028
03 ● ● 12425-03
035 ● ● 12425-035
042 ● ● 12425-042
045 ● ● 12425-045 Inlet: Quick-Release insert D 10
055 ● ● 12425-055 Length: 110 mm
06 ● ● 12425-06 Nozzle size Colour Order No.
07 ● ● 12425-07 033 ● ● 42404-033
075 ● ● 12425-075
