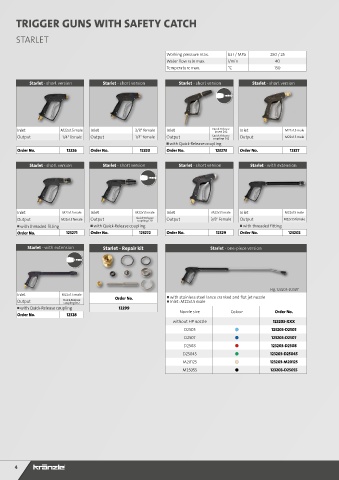

TRIGGER GUNS WITH SAFETY CATCH

STARLET

Working pressure max. bar / MPa 250 / 25
Water flow rate max. l/min 40
Temperature max. °C 150

Starlet - short version Starlet - short version Starlet - short version Starlet - short version

Inlet M22x1.5 male Inlet 3/8" female Inlet Quick-Release Inlet M22x1.5 male
insert D12
Output 1/4" female Output 1/4" female Output Quick-Release Output M22x1.5 male
coupling D12
with Quick-Release coupling
Order No. 12326 Order No. 12320 Order No. 123273 Order No. 12327

Starlet - short version Starlet - short version Starlet - short version Starlet - with extension

Inlet M22x1.5 male Inlet M22x1.5 male Inlet M22x1.5 male Inlet M22x1.5 male
Output M22x1.5 female Output Quick-Release Output 3/8" Female Output M22x1.5 female
coupling D12
with threaded fitting with Quick-Release coupling with threaded fitting
Order No. 123271 Order No. 123272 Order No. 12329 Order No. 123202

Starlet - with extension Starlet - Repair kit Starlet - one-piece version

Fig. 123203-D2507
Inlet M22x1.5 male Order No. with stainless steel lance cranked and flat jet nozzle
Output Quick-Release Inlet: M22x1.5 male
coupling D12
with Quick-Release coupling 12299
Order No. 12328 Nozzle size Colour Order No.
without HP nozzle 123203-XXX
D2505 ● ● 123203-D2505
D2507 ● ● 123203-D2507
D2508 ● ● 123203-D2508
D25045 ● ● 123203-D25045
M20125 ● ● 123203-M20125
M25055 ● ● 123203-D25055
