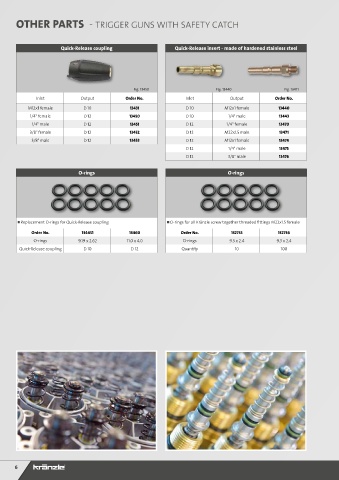

P. 6
OTHER PARTS - TRIGGER GUNS WITH SAFETY CATCH
Quick-Release coupling Quick-Release insert - made of hardened stainless steel
Fig. 13450 FIg. 13440 Fig. 13471
Inlet Output Order No. Inlet Output Order No.
M12x1 female D 10 13431 D 10 M12x1 female 13440
1/4" female D 12 13450 D 10 1/4" male 13443
1/4" male D 12 13451 D 12 1/4" female 13470
3/8" female D 12 13452 D 12 M22x1.5 male 13471
3/8" male D 12 13453 D 12 M12x1 female 13474
D 12 1/4" male 13475
D 12 3/8" male 13476
O-rings O-rings
Replacement O-rings for Quick-Release coupling O-rings for all Kränzle screw together threaded fittings M22x1.5 female
Order No. 134451 13460 Order No. 132735 132736
O-rings 9.19 x 2.62 11.0 x 4.0 O-rings 9.3 x 2.4 9.3 x 2.4
Quick-Release coupling D 10 D 12 Quantity 10 100
6
