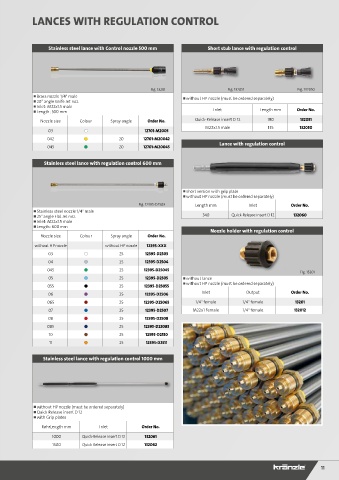

Page 11 - Kraenzle_tillbehor_2021

LANCES WITH REGULATION CONTROL

Stainless steel lance with Control nozzle 500 mm Short stub lance with regulation control

Fig. 13201 Fig. 132051 Fig. 132050
Brass nozzle 1/4" male without HP nozzle (must be ordered separately)
20° angle Knife Jet noz.
Inlet: M22x1.5 male
Length: 500 mm Inlet Length mm Order No.
Nozzle size Colour Spray angle Order No. Quick-Release insert D 12 180 132051
M22x1.5 male 135 132050
03 ● ● 12701-M2003
042 ● ● 20 12701-M20042
Lance with regulation control
045 ● ● 20 12701-M20045

Stainless steel lance with regulation control 600 mm

short version with grip plate
without HP nozzle (must be ordered separately)
Fig. 12395-D2503 Length mm Inlet Order No.
Stainless steel nozzle 1/4" male
25° angle Flat Jet noz. 340 Quick-Release insert D 12 132060
Inlet: M22x1.5 male
Length: 600 mm
Nozzle holder with regulation control
Nozzle size Colour Spray angle Order No.
without HP nozzle without HP nozzle 12395-XXX
03 ● ● 25 12395-D2503
04 ● 25 12395-D2504
●
045 ● ● 25 12395-D25045 FIg. 13201
05 ● ● 25 12395-D2505 without lance
without HP nozzle (must be ordered separately)
055 ● ● 25 12395-D25055
06 ● ● 25 12395-D2506 Inlet Output Order No.
065 ● ● 25 12395-D25065 1/4" female 1/4" female 13201
07 ● ● 25 12395-D2507 M22x1 Female 1/4" female 132012
08 ● ● 25 12395-D2508
085 ● ● 25 12395-D25085
10 ● ● 25 12395-D2510
11 ● ● 25 12395-D2511

Stainless steel lance with regulation control 1000 mm

without HP nozzle (must be ordered separately)
Quick-Release insert D 12
with Grip plates
RohrLength mm Inlet Order No.
1000 Quick-Release insert D 12 132061
1500 Quick-Release insert D 12 132062

11
