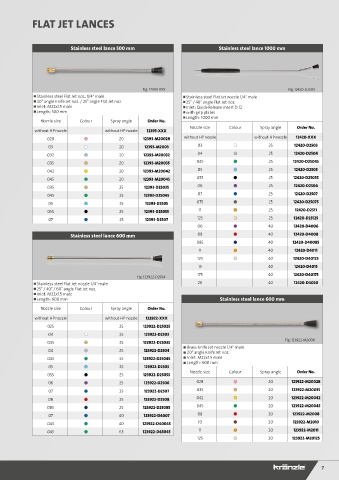

FLAT JET LANCES

Stainless steel lance 500 mm Stainless steel lance 1000 mm

Fig. 12393-XXX Fig. 12420-D2503
Stainless steel Flat Jet noz., 1/4" male Stainless steel Flat Jet nozzle 1/4" male
20° angle Knife Jet noz. / 25° angle Flat Jet noz. 25° / 40° angle Flat Jet noz.
Inlet: M22x1.5 male Inlet: Quick-Release insert D 12
Length: 500 mm with grip plates
Length: 1000 mm
Nozzle size Colour Spray angle Order No.
Nozzle size Colour Spray angle Order No.
without HP nozzle without HP nozzle 12393-XXX
028 ● ● 20 12393-M20028 without HP nozzle without HP nozzle 12420-XXX
03 ● ● 20 12393-M2003 03 ● ● 25 12420-D2503
032 ● ● 20 12393-M20032 04 ● ● 25 12420-D2504
035 ● ● 20 12393-M20035 045 ● ● 25 12420-D25045
042 ● ● 20 12393-M20042 05 ● ● 25 12420-D2505
045 ● ● 20 12393-M20045 055 ● ● 25 12420-D25055
035 ● ● 25 12393-D25035 06 ● ● 25 12420-D2506
045 ● ● 25 12393-D25045 07 ● ● 25 12420-D2507
05 ● ● 25 12393-D2505 075 ● ● 25 12420-D25075
055 ● ● 25 12393-D25055 11 ● ● 25 12420-D2511
07 ● ● 25 12393-D2507 125 ● ● 25 12420-D25125
06 ● ● 40 12420-D4006
Stainless steel lance 600 mm 08 ● ● 40 12420-D4008
085 ● ● 40 12420-D40085
11 ● ● 40 12420-D4011
125 ● ● 40 12420-D40125
15 40 12420-D4015
175 40 12420-D40175
Fig. 123922-D2504
Stainless steel Flat Jet nozzle 1/4" male 20 40 12420-D4020
25° / 40° / 60° angle Flat Jet noz.
Inlet: M22x1.5 male
Length: 600 mm Stainless steel lance 600 mm
Nozzle size Colour Spray angle Order No.
without HP nozzle without HP nozzle 123922-XXX
025 25 123922-D25025
03 ● ● 25 123922-D2503
Fig. 123922-M2008
035 ● ● 25 123922-D25035
■ Brass Knife Jet nozzle 1/4" male
04 ● ● 25 123922-D2504 ■ 20° angle Knife Jet noz.
045 ● ● 25 123922-D25045 ■ Inlet: M22x1.5 male
■ Length: 600 mm
05 ● ● 25 123922-D2505
Nozzle size Colour Spray angle Order No.
055 ● ● 25 123922-D25055
06 ● ● 25 123922-D2506 028 ● ● 20 123922-M20028
07 ● ● 25 123922-D2507 035 ● ● 20 123922-M20035
08 ● ● 25 123922-D2508 042 ● ● 20 123922-M20042
085 ● ● 25 123922-D25085 045 ● ● 20 123922-M20045
07 ● ● 40 123922-D4007 08 ● ● 20 123922-M2008
045 ● ● 40 123922-D40045 10 ● ● 20 123922-M2010
045 ● ● 65 123922-D65045 11 ● ● 20 123922-M2011
125 ● ● 20 123922-M20125
