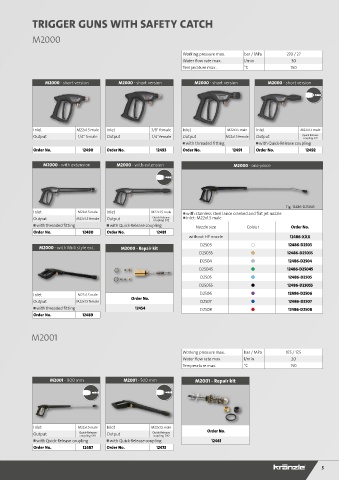

TRIGGER GUNS WITH SAFETY CATCH

M2000

Working pressure max. bar / MPa 270 / 27
Water flow rate max. l/min 30
Temperature max. °C 150

M2000 - short version M2000 - short version M2000 - short version M2000 - short version

Inlet M22x1.5 male Inlet 3/8" female Inlet M22x1.5 male Inlet M22x1.5 male
Output 1/4" female Output 1/4" female Output M22x1.5 female Output Quick-Release
coupling D12
with threaded fitting with Quick-Release coupling
Order No. 12490 Order No. 12493 Order No. 12491 Order No. 12492

M2000 - with extension M2000 - with extension M2000 - one-piece

Fig. 12486-D25045
Inlet M22x1.5 male Inlet M22x1.5 male with stainless steel lance cranked and flat jet nozzle
Output M22x1.5 female Output Quick-Release Inlet: M22x1.5 male
coupling D12
with threaded fitting with Quick-Release coupling Nozzle size Colour Order No.
Order No. 12480 Order No. 12481
without HP nozzle 12486-XXX
D2503 ● ● 12486-D2503
M2000 - with Midi style ext. M2000 - Repair kit
D25035 ● ● 12486-D25035
D2504 ● ● 12486-D2504
D25045 ● ● 12486-D25045
D2505 ● ● 12486-D2505
D25055 ● ● 12486-D25055
Inlet M22x1.5 male Order No. D2506 ● ● 12486-D2506
Output M22x1.5 female D2507 ● ● 12486-D2507
with threaded fitting 12454 D2508 ● ● 12486-D2508
Order No. 12489

M2001

Working pressure max. bar / MPa 175 / 17,5
Water flow rate max. l/min 20
Temperature max. °C 150

M2001 - 900 mm M2001 - 500 mm M2001 - Repair kit

Inlet M22x1.5 male Inlet M22x1.5 male
Output Quick-Release Output Quick-Release Order No.
coupling D10
coupling D10
with Quick-Release coupling with Quick-Release coupling 12461
Order No. 12487 Order No. 12475

5
