P. 58

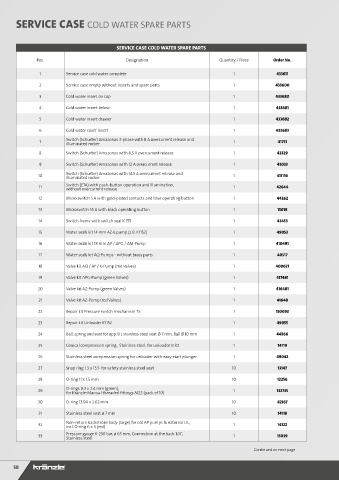

SERVICE CASE COLD WATER SPARE PARTS
SERVICE CASE COLD WATER SPARE PARTS
Pos. Designation Quantity / Piece Order No.
1 Service case cold water complete 1 433611
2 Service case empty without inserts and spare parts 1 433600
3 Cold water insert on top 1 433680
4 Cold water insert below 1 433681
5 Cold water insert drawer 1 433682
6 Cold water cover insert 1 433683
Switch (Schurter) Amazonas 3-phase with 8 A overcurrent release and
7 illuminated rocker 1 41751
8 Switch (Schurter) Amazonas with 8.5 A overcurrent release 1 43329
9 Switch (Schurter) Amazonas with 12 A overcurrent release 1 43033
10 Switch (Schurter) Amazonas with 14.5 A overcurrent release and 1 411116
illuminated rocker
11 Switch (ETA) with push-button operation and illumination, 1 42644
without overcurrent release
12 Micro switch 5 A with gold-plated contacts and blue operating button 1 44262
13 Microswitch 16 A with black operating button 1 15018
14 Switch frame with switch seal K 155 1 43453
15 Water seals kit 14 mm AZ-L pump (z.B. K1152) 1 49053
16 Water seals kit 18 mm AP / APG / AM-Pump 1 410491
17 Water seals kit AQ-Pumps - without brass parts 1 40517
18 Valve kit AQ / AY / K-Pump (red Valves) 1 400621
19 Valve kit APG-Pump (green Valves) 1 417481
20 Valve kit AZ-Pump (green Valves) 1 416481
21 Valve kit AZ-Pump (red Valves) 1 41648
22 Repair kit Pressure switch mechanism TS 1 150093
23 Repair kit Unloader K1152 1 49055
24 Ball, spring and seat for opp. UL stainless steel seat Ø 7 mm, Ball Ø 10 mm 1 44566
25 Conical compression spring , Stainless steel, for unloader Inlet 1 14119
26 Stainless steel compression spring for unloader with easy-start plunger 1 49042
27 Snap ring 1.3 x 15.5 for safety stainless steel seat 10 13147
28 O-ring 11 x 1.5 mm 10 12256
29 O-rings 9.3 x 2.4 mm (green), 1 132735
for Kränzle-Manual threaded fittings M22 (pack of 10)
30 O-ring 13.94 x 2.62 mm 10 42167
31 Stainless steel seat ø 7 mm 10 14118
Non-return backstroke body (large) for old AP pumps & external UL,
32 incl. O-ring 6 x 3 (red) 1 14122
33 Pressure gauge 0-250 bar, ø 63 mm, Connection at the back 1/4", 1 15039
Stainless steel
Continued on next page
58
