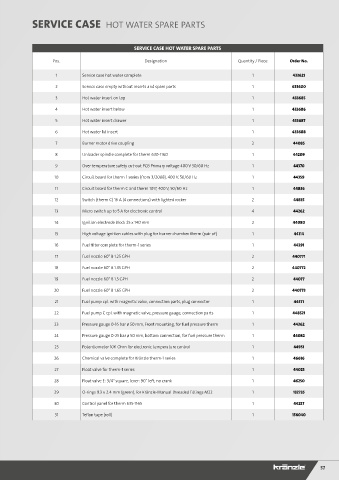

SERVICE CASE HOT WATER SPARE PARTS

SERVICE CASE HOT WATER SPARE PARTS

Pos. Designation Quantity / Piece Order No.

1 Service case hot water complete 1 433621
2 Service case empty without inserts and spare parts 1 433600

3 Hot water insert on top 1 433685
4 Hot water insert below 1 433686

5 Hot water insert drawer 1 433687
6 Hot water lid insert 1 433688

7 Burner motor drive coupling 2 44085
8 Unloader spindle complete for therm 630-1160 1 44209

9 Over temperature safety cut-out PCB Primary voltage 400 V 50/60 Hz 1 44370
10 Circuit board for therm-1 series (from 3/2008), 400 V, 50/60 Hz 1 44359

11 Circuit board for therm C and therm 1017, 400 V, 50/60 Hz 1 44836
12 Switch (therm C) 16 A (4 connections) with lighted rocker 2 44835

13 Micro switch up to 5 A for electronic control 4 44262
14 Ignition electrode block 25 x 140 mm 2 44080

15 High voltage ignition cables with plug for burner chamber therm (pair of) 1 44114
16 Fuel filter complete for therm-1 series 1 44391

17 Fuel nozzle 60° B 1.25 GPH 2 440771
18 Fuel nozzle 60° B 1.35 GPH 2 440772
19 Fuel nozzle 60° B 1.5 GPH 2 44077

20 Fuel nozzle 60° B 1.65 GPH 2 440773

21 Fuel pump cpl. with magnetic valve, connection parts, plug connector 1 44371
22 Fuel pump C cpl. with magnetic valve, pressure gauge, connection parts 1 448521
23 Pressure gauge 0-16 bar ø 50 mm, Front mounting, for fuel pressure therm 1 44362

24 Pressure gauge 0-25 bar ø 50 mm, bottom connection, for fuel pressure therm 1 44082
25 Potentiometer 10K-Ohm for electronic temperature control 1 44951

26 Chemical valve complete for Kränzle therm-1 series 1 46616
27 Float valve for therm-1 series 1 44025

28 Float valve E: 3/4" square, lever: 90° left, no crank 1 46250
29 O-rings 9.3 x 2.4 mm (green), for Kränzle-Manual threaded fittings M22 1 132735

30 Control panel for therm 635-1165 1 44257
31 Teflon tape (roll) 1 156040
