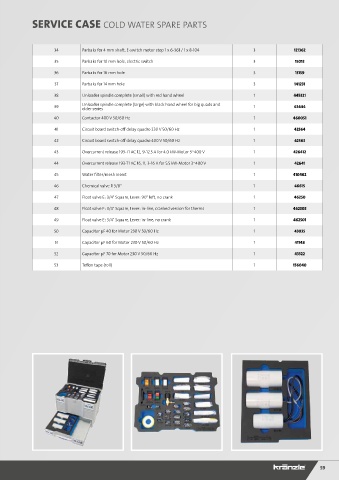

SERVICE CASE COLD WATER SPARE PARTS

34 Parbaks for 4 mm shaft, E-switch motor stop 1 x 6-361 / 1 x 8-104 3 121362

35 Parbaks for 10 mm hole, electric switch 3 15013
36 Parbaks for 16 mm hole 3 13159

37 Parbaks for 14 mm hole 3 141231
38 Unloader spindle complete (small) with red hand wheel 1 445321

39 Unloader spindle complete (large) with black hand wheel for big quads and 1 43444
older series
40 Contactor 400 V 50/60 Hz 1 460051

41 Circuit board switch-off delay quadro 230 V 50/60 Hz 1 42564
42 Circuit board switch-off delay quadro 400 V 50/60 Hz 1 42563

43 Overcurrent release 193-T1 AC 12, 9-12.5 A for 4.0 kW-Motor 3~400 V 1 426412
44 Overcurrent release 193-T1 AC 16, 11, 3-16 A for 5.5 kW-Motor 3~400 V 1 42641

45 Water filter/mesh insert 1 410462
46 Chemical valve R 3/8'' 1 46615

47 Float valve E: 3/4" Square, Lever: 90° left, no crank 1 46250
48 Float valve E: 3/4" Square, Lever: in-line, cranked version for therms 1 462505

49 Float valve E: 3/4" Square, Lever: in-line, no crank 1 462501
50 Capacitor µF 40 for Motor 230 V 50/60 Hz 1 43035
51 Capacitor µF 60 for Motor 230 V 50/60 Hz 1 41148

52 Capacitor µF 70 for Motor 230 V 50/60 Hz 1 43322

53 Teflon tape (roll) 1 156040
