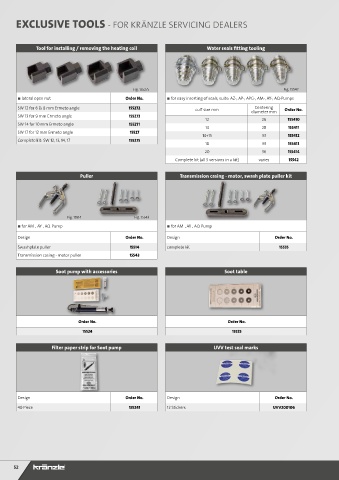

Page 52 - Kraenzle_tillbehor_2021

EXCLUSIVE TOOLS - FOR KRÄNZLE SERVICING DEALERS

Tool for installing / removing the heating coil Water seals fitting tooling

Fig. 155275 Fig. 15542
■ lateral open nut Order No. ■ for easy inserting of seals, suits: AZ-, AP-, APG-, AM-, AY-, AQ-Pumps
Centering
SW 12 for 6 & 8 mm Ermeto angle 155272 cuff size mm diameter mm Order No.
SW 13 for 9 mm Ermeto angle 155273
12 26 155410
SW 14 for 10 mm Ermeto angle 155271
14 28 155411
SW 17 for 12 mm Ermeto angle 15527
14+15 33 155412
Complete kit: SW 12, 13, 14, 17 155275
18 33 155413
20 36 155414
Complete kit (all 5 versions in a kit) varies 15542

Puller Transmission casing - motor, swash plate puller kit

Fig. 15514 Fig. 15543
■ for AM-, AY-, AQ-Pump ■ for AM-, AY-, AQ-Pump
Design Order No. Design Order No.

Swashplate puller 15514 complete kit 15535
Transmission casing - motor puller 15543

Soot pump with accessories Soot table

Order No. Order No.
15524 15525

Filter paper strip for Soot pump UVV test seal marks

Design Order No. Design Order No.

40 Piece 155241 12 Stickers UVV200106
