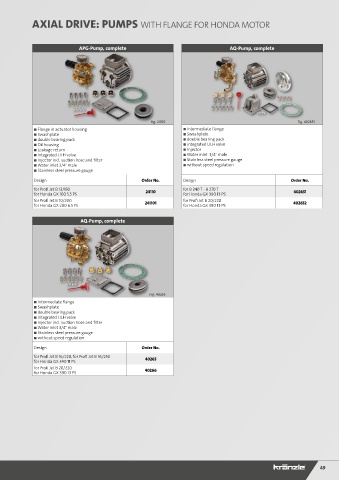

AXIAL DRIVE: PUMPS WITH FLANGE FOR HONDA MOTOR

APG-Pump, complete AQ-Pump, complete

Fig. 24110 Fig. 402651
■ Flange in actuator housing ■ intermediate flange
■ Swashplate ■ Swashplate
■ double bearing pack ■ double bearing pack
■ Oil housing ■ integrated ULH valve
■ Leakage return ■ Injector
■ integrated ULH valve ■ Water inlet 3/4" male
■ Injector incl. suction hose and filter ■ Stainless steel pressure gauge
■ Water inlet 3/4" male ■ without speed regulation
■ Stainless steel pressure gauge
Design Order No. Design Order No.
for Profi Jet B 13/150 24110 for B 240 T - B 270 T 402651
for Honda GX 160 5.5 PS for Honda GX 390 13 PS
for Profi Jet B 10/200 241101 for Profi Jet B 20/220 402652
for Honda GX 200 6.5 PS for Honda GX 390 13 PS

AQ-Pump, complete

Fig. 40265
■ intermediate flange
■ Swashplate
■ double bearing pack
■ integrated ULH valve
■ Injector incl. suction hose and filter
■ Water inlet 3/4" male
■ Stainless steel pressure gauge
■ without speed regulation

Design Order No.
for Profi Jet B 16/220, for Profi Jet B 16/250
for Honda GX 340 11 PS 40265
for Profi Jet B 20/220 40266
for Honda GX 390 13 PS
