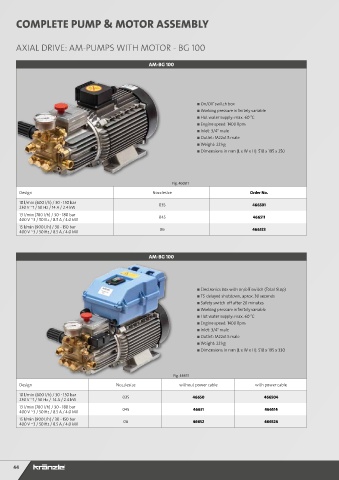

COMPLETE PUMP & MOTOR ASSEMBLY

AXIAL DRIVE: AM-PUMPS WITH MOTOR - BG 100

AM-BG 100

■ On/Off switch box
■ Working pressure infinitely variable
■ Hot water supply: max. 60 °C
■ Engine speed: 1400 Rpm
■ Inlet: 3/4" male
■ Outlet: M22x1.5 male
■ Weight: 22 kg
■ Dimensions in mm (L x W x H): 510 x 195 x 250

Fig. 466511
Design Nozzlesize Order No.
10 l/min (600 l/h) / 30 - 150 bar 035 466501
230 V ~1 / 50 Hz / 14 A / 2.4 kW
13 l/min (780 l/h) / 30 - 180 bar 045 466511
400 V ~3 / 50 Hz / 8.5 A / 4.0 kW
15 l/min (900 l/h) / 30 - 150 bar 06 466523
400 V ~3 / 50 Hz / 8.5 A / 4.0 kW

AM-BG 100

■ Electronics box with on/off switch (Total-Stop)
■ TS-delayed shutdown, aprox. 30 seconds
■ Safety switch-off after 20 minutes
■ Working pressure infinitely variable
■ Hot water supply: max. 60 °C
■ Engine speed: 1400 Rpm
■ Inlet: 3/4" male
■ Outlet: M22x1.5 male
■ Weight: 22 kg
■ Dimensions in mm (L x W x H): 510 x 195 x 330

Fig. 46651
Design Nozzlesize without power cable with power cable
10 l/min (600 l/h) / 30 - 150 bar
230 V ~1 / 50 Hz / 14 A / 2.4 kW 035 46650 466504
13 l/min (780 l/h) / 30 - 180 bar 045 46651 466514
400 V ~3 / 50 Hz / 8.5 A / 4.0 kW
15 l/min (900 l/h) / 30 - 150 bar 06 46652 466524
400 V ~3 / 50 Hz / 8.5 A / 4.0 kW
