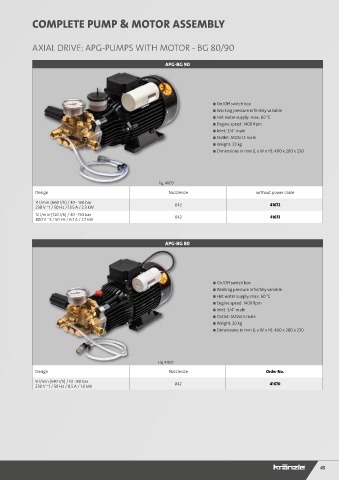

COMPLETE PUMP & MOTOR ASSEMBLY

AXIAL DRIVE: APG-PUMPS WITH MOTOR - BG 80/90

APG-BG 90

■ On/Off switch box
■ Working pressure infinitely variable
■ Hot water supply: max. 60 °C
■ Engine speed: 1400 Rpm
■ Inlet: 3/4" male
■ Outlet: M22x1.5 male
■ Weight: 23 kg
■ Dimensions in mm (L x W x H): 400 x 200 x 230

Fig. 41673
Design Nozzlesize without power cable
11 l/min (660 l/h) / 30 - 130 bar 042 41672
230 V ~1 / 50 Hz / 13.5 A / 2.3 kW
12 l/min (720 l/h) / 30 - 150 bar
400 V ~3 / 50 Hz / 6.7 A / 2.7 kW 042 41673

APG-BG 80

■ On/Off switch box
■ Working pressure infinitely variable
■ Hot water supply: max. 60 °C
■ Engine speed: 1400 Rpm
■ Inlet: 3/4" male
■ Outlet: M22x1.5 male
■ Weight: 20 kg
■ Dimensions in mm (L x W x H): 400 x 200 x 230

Fig. 41670
Design Nozzlesize Order No.
9 l/min (540 l/h) / 10 - 80 bar 042 41670
230 V ~1 / 50 Hz / 8.5 A / 1.0 kW
