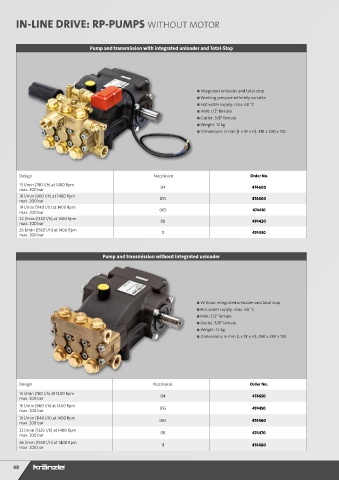

IN-LINE DRIVE: RP-PUMPS WITHOUT MOTOR

Pump and transmission with integrated unloader and Total-Stop

■ Integrated unloader and total stop
■ Working pressure infinitely variable
■ Hot water supply: max. 60 °C
■ Inlet: 1/2" female
■ Outlet: 3/8" female
■ Weight: 12 kg
■ Dimensions in mm (L x W x H): 310 x 290 x 150

Design Nozzlesize Order No.
13 l/min (780 l/h) at 1400 Rpm
max. 200 bar 04 474600
16 l/min (960 l/h) at 1400 Rpm 055 474400
max. 200 bar
19 l/min (1140 l/h) at 1400 Rpm 065 474410
max. 200 bar
22 l/min (1320 l/h) at 1400 Rpm 08 474420
max. 200 bar
26 l/min (1560 l/h) at 1400 Rpm
max. 200 bar 11 474430

Pump and transmission without integrated unloader

■ Without integrated unloader and total stop
■ Hot water supply: max. 60 °C
■ Inlet: 1/2" female
■ Outlet: 3/8" female
■ Weight: 12 kg
■ Dimensions in mm (L x W x H): 290 x 230 x 150

Design Nozzlesize Order No.
13 l/min (780 l/h) at 1400 Rpm
max. 200 bar 04 474650
16 l/min (960 l/h) at 1400 Rpm 055 474450
max. 200 bar
19 l/min (1140 l/h) at 1400 Rpm 065 474460
max. 200 bar
22 l/min (1320 l/h) at 1400 Rpm 08 474470
max. 200 bar
26 l/min (1560 l/h) at 1400 Rpm 11 474480
max. 200 bar

48
