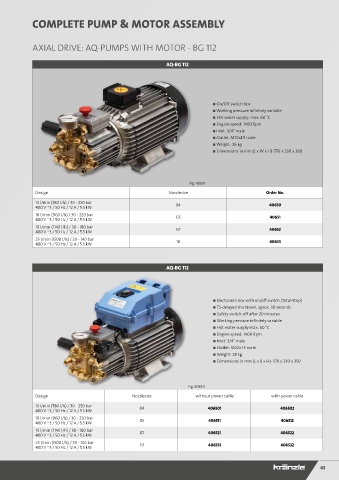

COMPLETE PUMP & MOTOR ASSEMBLY

AXIAL DRIVE: AQ-PUMPS WITH MOTOR - BG 112

AQ-BG 112
AQ-BG 112

■ On/Off switch box
■ Working pressure infinitely variable
■ Hot water supply: max. 60 °C
■ Engine speed: 1400 Rpm
■ Inlet: 3/4" male
■ Outlet: M22x1.5 male
■ Weight: 26 kg
■ Dimensions in mm (L x W x H): 570 x 230 x 260

Fig. 40651
Design Nozzlesize Order No.
13 l/min (780 l/h) / 30 - 250 bar 04 40650
400 V ~3 / 50 Hz / 12 A / 5.5 kW
16 l/min (960 l/h) / 30 - 220 bar 05 40651
400 V ~3 / 50 Hz / 12 A / 5.5 kW
19 l/min (1140 l/h) / 30 - 180 bar 07 40652
400 V ~3 / 50 Hz / 12 A / 5.5 kW
25 l/min (1500 l/h) / 30 - 140 bar 10 40653
400 V ~3 / 50 Hz / 12 A / 5.5 kW

AQ-BG 112
AQ-BG 112

■ Electronics box with on/off switch (Total-Stop)
■ TS-delayed shutdown, aprox. 30 seconds
■ Safety switch-off after 20 minutes
■ Working pressure infinitely variable
■ Hot water supply max. 60 °C
■ Engine speed: 1400 Rpm
■ Inlet: 3/4" male
■ Outlet: M22x1.5 male
■ Weight: 28 kg
■ Dimensions in mm (L x B x H): 570 x 230 x 350

Fig. 406511
Design Nozzlesize without power cable with power cable
13 l/min (780 l/h) / 30 - 250 bar 04 406501 406502
400 V ~3 / 50 Hz / 12 A / 5.5 kW
16 l/min (960 l/h) / 30 - 220 bar 05 406511 406512
400 V ~3 / 50 Hz / 12 A / 5.5 kW
19 l/min (1140 l/h) / 30 - 180 bar 07 406521 406522
400 V ~3 / 50 Hz / 12 A / 5.5 kW
25 l/min (1500 l/h) / 30 - 140 bar 10 406531 406532
400 V ~3 / 50 Hz / 12 A / 5.5 kW

43
