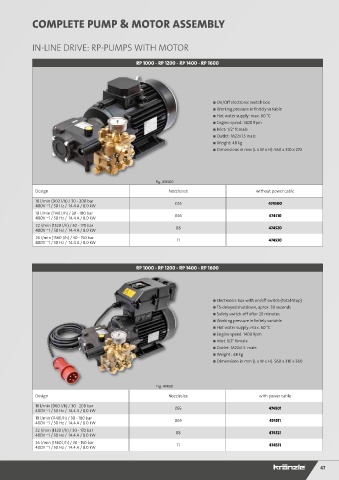

COMPLETE PUMP & MOTOR ASSEMBLY

IN-LINE DRIVE: RP-PUMPS WITH MOTOR

RP 1000 - RP 1200 - RP 1400 - RP 1600

■ On/Off electronic switch box
■ Working pressure infinitely variable
■ Hot water supply: max. 60 °C
■ Engine speed: 1400 Rpm
■ Inlet: 1/2" female
Abb. 1342 ■ Outlet: M22x1.5 male
■ Weight: 48 kg
■ Dimensions in mm (L x W x H): 560 x 310 x 270

Fig. 474500
Design Nozzlesize without power cable

16 l/min (960 l/h) / 30 - 200 bar 055 474500
400V ~1 / 50 Hz / 14.4 A / 8.0 kW
19 l/min (1140 l/h) / 30 - 180 bar 065 474510
400V ~1 / 50 Hz / 14.4 A / 8.0 kW
22 l/min (1320 l/h) / 30 - 170 bar
400V ~1 / 50 Hz / 14.4 A / 8.0 kW 08 474520
26 l/min (1560 l/h) / 30 - 150 bar 11 474530
400V ~1 / 50 Hz / 14.4 A / 8.0 kW

RP 1000 - RP 1200 - RP 1400 - RP 1600

■ Electronics box with on/off switch (Total-Stop)
■ TS-delayed shutdown, aprox. 30 seconds
■ Safety switch-off after 20 minutes
■ Working pressure infinitely variable
■ Hot water supply: max. 60 °C
■ Engine speed: 1400 Rpm
■ Inlet: 1/2" female
■ Outlet: M22x1.5 male
■ Weight : 48 kg
■ Dimensions in mm (L x W x H): 560 x 310 x 360

Fig. 474501
Design Nozzlesize with power cable
16 l/min (960 l/h) / 30 - 200 bar 055 474501
400V ~1 / 50 Hz / 14.4 A / 8.0 kW
19 l/min (1140l/h) / 30 - 180 bar 065 474511
400V ~1 / 50 Hz / 14.4 A / 8.0 kW
22 l/min (1320 l/h) / 30 - 170 bar 08 474521
400V ~1 / 50 Hz / 14.4 A / 8.0 kW
26 l/min (1560 l/h) / 30 - 150 bar 11 474531
400V ~1 / 50 Hz / 14.4 A / 8.0 kW
