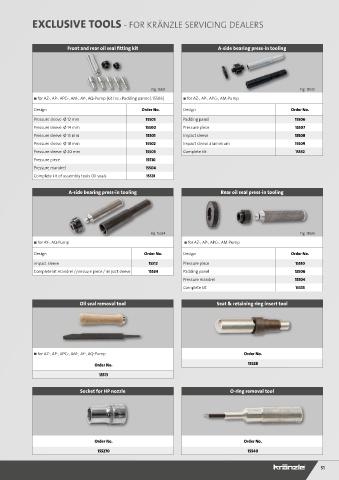

Page 51 - Kraenzle_tillbehor_2021

EXCLUSIVE TOOLS - FOR KRÄNZLE SERVICING DEALERS

Front and rear oil seal fitting kit A-side bearing press-in tooling

Fig. 15531 Fig. 15532
■ for AZ-, AP-, APG-, AM-, AY-, AQ-Pump (kit inc.: Padding pannel, 15506) ■ for AZ-, AP-, APG-, AM-Pump
Design Order No. Design Order No.

Pressure sleeve Ø 12 mm 15505 Padding panel 15506
Pressure sleeve Ø 14 mm 15500 Pressure piece 15507
Pressure sleeve Ø 15 mm 15501 Impact sleeve 15508
Pressure sleeve Ø 18 mm 15502 Impact sleeve aluminium 15509
Pressure sleeve Ø 20 mm 15503 Complete kit 15532
Pressure piece 15510
Pressure mandrel 15504
Complete kit of assembly tools Oil seals 15531

A-side bearing press-in tooling Rear oil seal press-in tooling

Fig. 15534 Fig. 15533
■ for AY-, AQ-Pump ■ for AZ-, AP-, APG-, AM-Pump

Design Order No. Design Order No.
impact sleeve 15512 Pressure piece 15510
Complete kit mandrel / pressure piece / impact sleeve 15534 Padding panel 15506
Pressure mandrel 15504
Complete kit 15533

Oil seal removal tool Seat & retaining ring insert tool

■ for AZ-, AP-, APG-, AM-, AY-, AQ-Pump Order No.
Order No. 15528

15513

Socket for HP nozzle O-ring removal tool

Order No. Order No.
155270 15540

51
