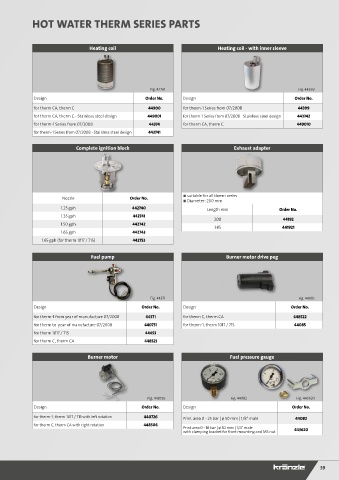

HOT WATER THERM SERIES PARTS

Heating coil Heating coil - with inner sleeve

Fig. 42261 Fig. 44399
Design Order No. Design Order No.
for therm CA, therm C 44900 for therm-1 Series from 07/2008 44399
for therm CA, therm C - Stainless steel design 449001 for therm-1 Series from 07/2008 - Stainless steel design 443742
for therm-1 Series from 07/2008 44374 for therm CA, therm C 449010
for therm-1 Series from 07/2008 - Stainless steel design 443741

Complete ignition block Exhaust adapter

■ suitable for all therm series
Nozzle Order No.
■ Diameter: 200 mm
1.25 gph 442740 Length mm Order No.
1.35 gph 442741
200 44192
1.50 gph 442742
385 441921
1.65 gph 442743
1.65 gph (for therm 1017 / 715) 442753

Fuel pump Burner motor drive peg

Fig. 44371 Fig. 44085
Design Order No. Design Order No.
for therm-1 from year of manufacture 07/2008 44371 for therm C, therm CA 448522
for therm to year of manufacture 07/2008 440731 for therm-1, therm 1017 / 715 44085
for therm 1017 / 715 44453
for therm C, therm CA 448521

Burner motor Fuel pressure gauge

Fig. 440726 Fig. 44082 Fig. 443620
Design Order No. Design Order No.
for therm-1, therm 1017 / 715 with left rotation 440726 Print area 0 - 25 bar | ø 50 mm | 1/8" male 44082
for therm C, therm CA with right rotation 448506
Print area 0 - 16 bar | ø 50 mm | 1/4" male
with clamping bracket for front mounting and MS nut 443620

39
