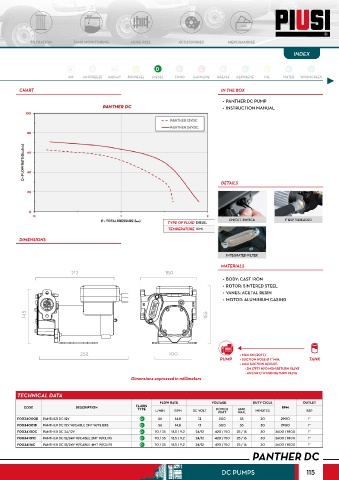

Page 115 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• PANTHER DC PUMP
• INSTRUCTION MANUAL

DETAILS

ON/OFF SWITCH 1” BSP THREADED
TYPE OF FLUID DIESEL
TEMPERATURE 22°C
DIMENSIONS

INTEGRATED FILTER
MATERIALS
212 150
• BODY: CAST IRON
• ROTOR: SINTERED STEEL
• VANES: ACETAL RESIN
• MOTOR: ALUMINIUM CASING

145 155

252 100 > MAX 6M (20FT),
PUMP > SUCTION HOSE Ø 1” MIN, TANK
> MAX SUCTION HEIGHT:
- 2M (7FT) W/O NON RETURN VALVE
- 4M (14FT) W NON RETURN VALVE
Dimensions expressed in millimeters

TECHNICAL DATA
FLOW RATE VOLTAGE DUTY CICLE OUTLET
CODE DESCRIPTION FLUIDS L/MIN GPM DC VOLT POWER MAX. MINUTES RPM BSP
TYPE
AMP.
WATT
F0034000B PANTHER DC 12V D 56 14,8 12 300 35 30 2900 1”
F0034001B PANTHER DC 12V W/CABLE 2MT W/PLIERS D 56 14,8 12 300 35 30 2900 1”
F0034100C PANTHER DC 24/12V D 70 / 35 18,5 / 9,2 24/12 420 / 150 25 / 16 30 3600 / 1800 1”
F0034101C PANTHER DC 12/24V W/CABLE 2MT W/CLIPS D 70 / 35 18,5 / 9,2 24/12 420 / 150 25 / 16 30 3600 / 1800 1”
F0034116C PANTHER DC 12/24V W/CABLE 4MT W/CLIPS D 70 / 35 18,5 / 9,2 24/12 420 / 150 25 / 16 30 3600 / 1800 1”
PANTHER DC

DC PUMPS 115
