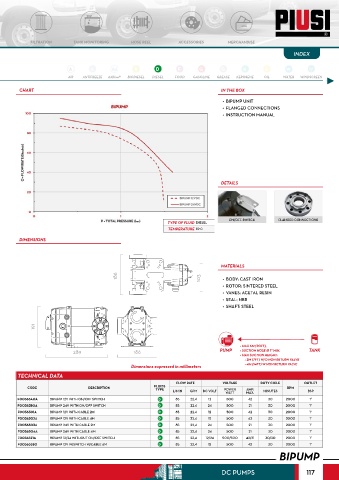

Page 117 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• BIPUMP UNIT
• FLANGED CONNECTIONS
• INSTRUCTION MANUAL

DETAILS

ON/OFF SWITCH FLANGED CONNECTIONS
TYPE OF FLUID DIESEL
TEMPERATURE 15°C
DIMENSIONS

MATERIALS
186 103 • BODY: CAST IRON
• ROTOR: SINTERED STEEL
• VANES: ACETAL RESIN
• SEAL: NBR
• SHAFT: STEEL

191

> MAX 6M (20FT),
289 186 PUMP > SUCTION HOSE Ø 1” MIN, TANK
> MAX SUCTION HEIGHT:
- 2M (7FT) W/O NON RETURN VALVE
Dimensions expressed in millimeters - 4M (14FT) W NON RETURN VALVE
TECHNICAL DATA
FLOW RATE VOLTAGE DUTY CICLE OUTLET
CODE DESCRIPTION FLUIDS L/MIN GPM DC VOLT POWER MAX. MINUTES RPM BSP
AMP.
TYPE
WATT
F00363A0A BIPUMP 12V WITH ON/OFF SWITCH D 85 22,4 12 500 42 30 2000 1”
F00363B0A BIPUMP 24V WITH ON/OFF SWITCH D 85 22,4 24 500 21 30 2000 1”
F0036301A BIPUMP 12V WITH CABLE 2M D 85 22,4 12 500 42 30 2000 1”
F0036302A BIPUMP 12V WITH CABLE 4M D 85 22,4 12 500 42 30 2000 1”
F0036303A BIPUMP 24V WITH CABLE 2M D 85 22,4 24 500 21 30 2000 1”
F0036304A BIPUMP 24V WITH CABLE 4M D 85 22,4 24 500 21 30 2000 1”
F0036321A BIPUMP 12/24 WITHOUT ON/OFF SWITCH D 85 22,4 12/24 500/500 42/21 30/30 2000 1”
F00363380 BIPUMP 12V W/SWITCH W/CABLE 6M D 85 22,4 12 500 42 30 2000 1”
BIPUMP

DC PUMPS 117
