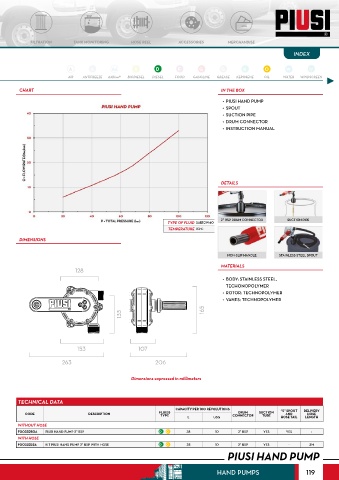

Page 119 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• PIUSI HAND PUMP
• SPOUT
• SUCTION PIPE
• DRUM CONNECTOR
• INSTRUCTION MANUAL

DETAILS

2” BSP DRUM CONNECTOR SUCTION PIPE
TYPE OF FLUID SAE10W40
TEMPERATURE 23°C
DIMENSIONS

NON-SLIP HANDLE STAINLESS STEEL SPOUT
MATERIALS
128
• BODY: STAINLESS STEEL,
TECHONOPOLYMER
• ROTOR: TECHNOPOLYMER
• VANES: TECHNOPOLYMER
165
133

153 107

263 206

Dimensions expressed in millimeters

TECHNICAL DATA
CAPACITY PER 100 REVOLUTIONS “S” SPOUT DELIVERY
DRUM
AND
HOSE
CODE DESCRIPTION FLUIDS L USG CONNECTOR SUCTION HOSE TAIL LENGTH
TUBE
TYPE
WITHOUT HOSE
F0033250A PIUSI HAND PUMP 2” BSP D O 38 10 2” BSP YES YES -
WITH HOSE
F0033252A KIT PIUSI HAND PUMP 2” BSP WITH HOSE D O 38 10 2” BSP YES - 3M
PIUSI HAND PUMP

HAND PUMPS 119
