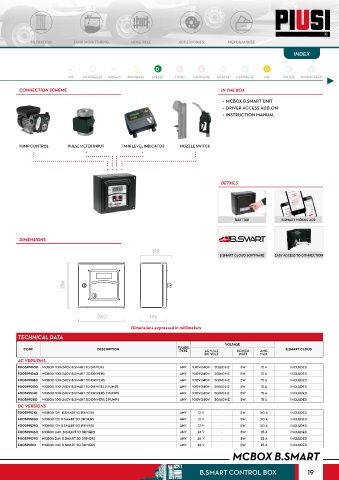

Page 19 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART
CONNECTION SCHEME IN THE BOX
• MCBOX B.SMART UNIT
• DRIVER ACCESS ADD-ON
• INSTRUCTION MANUAL

PUMP CONTROL PULSE METER INPUT TANK LEVEL INDICATOR NOZZLE SWITCH

DETAILS

SHUTTER B.SMART MOBILE APP

DIMENSIONS
172
B.SMART CLOUD SOFTWARE EASY ACCESS TO CONNECTION
MATERIALS

256

260 146
Dimensions expressed in millimeters
TECHNICAL DATA
VOLTAGE
CODE DESCRIPTION FLUIDS AC V./HZ POWER AMP. B.SMART CLOUD
TYPE
DC VOLT WATT MAX.
AC VERSIONS
F00599000 MCBOX 100-240V B.SMART 10 DRIVERS ANY 100V-240V 50/60 HZ 5W 15 A INCLUDED
F00599040 MCBOX 100-240V B.SMART 20 DRIVERS ANY 100V-240V 50/60 HZ 5W 15 A INCLUDED
F00599080 MCBOX 100-240V B.SMART 50 DRIVERS ANY 100V-240V 50/60 HZ 5W 15 A INCLUDED
F00599200 MCBOX 100-240V B.SMART 10 DRIVERS 2 PUMPS ANY 100V-240V 50/60 HZ 5W 15 A INCLUDED
F00599240 MCBOX 100-240V B.SMART 20 DRIVERS 2 PUMPS ANY 100V-240V 50/60 HZ 5W 15 A INCLUDED
F00599280 MCBOX 100-240V B.SMART 50 DRIVERS 2 PUMPS ANY 100V-240V 50/60 HZ 5W 15 A INCLUDED
DC VERSIONS
F00599010 MCBOX 12V B.SMART 10 DRIVERS ANY 12 V - 5W 50 A INCLUDED
F00599050 MCBOX 12V B.SMART 20 DRIVERS ANY 12 V - 5W 50 A INCLUDED
F00599090 MCBOX 12V B.SMART 50 DRIVERS ANY 12 V - 5W 50 A INCLUDED
F00599060 MCBOX 24V B.SMART 10 DRIVERS ANY 24 V - 5W 25 A INCLUDED
F00599070 MCBOX 24V B.SMART 20 DRIVERS ANY 24 V - 5W 25 A INCLUDED
F00599110 MCBOX 24V B.SMART 50 DRIVERS ANY 24 V - 5W 25 A INCLUDED
MCBOX B.SMART

B.SMART CONTROL BOX 19
