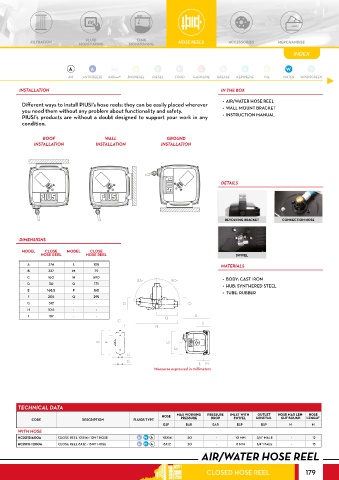

HOSE REELS
FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX
A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

INSTALLATION IN THE BOX

• AIR/WATER HOSE REEL
Different ways to install PIUSI’s hose reels: they can be easily placed wherever
you need them without any problem about functionality and safety. • WALL MOUNT BRACKET
PIUSI’s products are without a doubt designed to support your work in any • INSTRUCTION MANUAL
condition.

ROOF WALL GROUND
INSTALLATION INSTALLATION INSTALLATION

DETAILS

REVOLVING BRACKET CONNECTION HOSE

DIMENSIONS
MODEL CLOSE MODEL CLOSE
HOSE REEL HOSE REEL SWIVEL

A 374 L 108 MATERIALS
B 337 M 79
C 160 N 590 • BODY: CAST IRON
83° 90°
D 30 O 171 • HUB: SYNTHERED STEEL
E 168.5 P 168
• TUBE: RUBBER
F 205 Q 295
G 312 - - O O
H 10.5 - -
I 187 - - Q A
C I
N

B F G
E
H
D L M
Measures expressed in millimeters

TECHNICAL DATA

HOSE MAX WORKING PRESSURE INLET WITH OUTLET HOSE MAX LEN- HOSE
CODE DESCRIPTION FLUIDS TYPE PRESSURE DROP SWIVEL HOSETAIL GHT BOUND LENGHT
BSP BAR BAR BSP BSP M M
WITH HOSE
HC20121400A CLOSE REEL 10X14 + 12MT HOSE A W A 10X14 20 - 10 MM 3/4” MALE - 12
HC201511200A CLOSE REEL 8X12 + 15MT HOSE A W A 8X12 20 - 8 MM 1/4” MALE - 15
AIR/WATER HOSE REEL

CLOSED HOSE REEL 179
