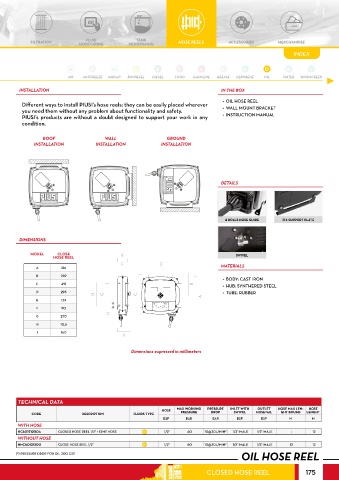

Page 175 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
HOSE REELS
MONITORING MONITORING
INDEX
A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

INSTALLATION IN THE BOX

• OIL HOSE REEL
Different ways to install PIUSI’s hose reels: they can be easily placed wherever
you need them without any problem about functionality and safety. • WALL MOUNT BRACKET
PIUSI’s products are without a doubt designed to support your work in any • INSTRUCTION MANUAL
condition.

ROOF WALL GROUND
INSTALLATION INSTALLATION INSTALLATION

DETAILS

4 ROLLS HOSE GUIDE FIX SUPPORT PLATE

DIMENSIONS

MODEL CLOSE E SWIVEL
HOSE REEL
F C MATERIALS
A 516
B 259
• BODY: CAST IRON
C 491 B • HUB: SYNTHERED STEEL
D 295 • TUBE: RUBBER
D G C A
E 123
F 90
H
G 270
H 10,5
I 160
I

Dimensions expressed in millimeters

TECHNICAL DATA

HOSE MAX WORKING PRESSURE INLET WITH OUTLET HOSE MAX LEN- HOSE
CODE DESCRIPTION FLUIDS TYPE PRESSURE DROP SWIVEL HOSETAIL GHT BOUND LENGHT
BSP BAR BAR BSP BSP M M
WITH HOSE
HC60121200A CLOSED HOSE REEL 1/2” + 12MT HOSE O 1/2” 60 10@30L/MIN* 1/2” MALE 1/2” MALE - 12
WITHOUT HOSE
HNC60121200 CLOSE HOSE REEL 1/2” O 1/2” 60 10@30L/MIN* 1/2” MALE 1/2” MALE 12 12
OIL HOSE REEL
(*) PRESSURE DROP FOR OIL 200 CST

CLOSED HOSE REEL 175
