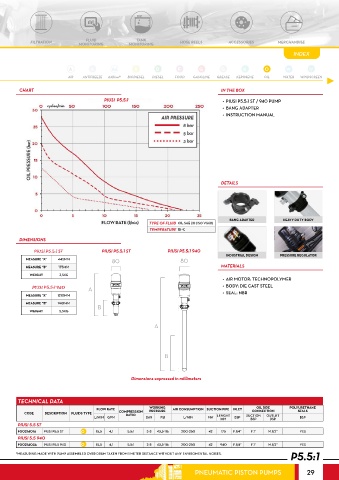

Page 29 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX
PIUSI P5.5:1 • PIUSI P5.5:1 ST / 940 PUMP
• BANG ADAPTER
• INSTRUCTION MANUAL

DETAILS

BANG ADAPTER HEAVY DUTY BODY
TYPE OF FLUID OIL SAE 20 (ISO VG68)
TEMPERATURE 18 °C
DIMENSIONS
4
PIUSI P5.5:1 S
PIUSI P5.5:1 9
T
PIUSI P5.5:1 ST PIUSI P5.5:1 S T PIUSI P5.5:1 940
0
PIUSI P5.5:1 ST
INDUSTRIAL DESIGN PRESSURE REGULATOR
MEASURE “A” 445MM
80 80
MEASURE “B” 175MM MATERIALS
WEIGHT 3,5KG
• AIR MOTOR: TECHNOPOLYMER
PIUSI P5.5:1 9 4 0 A • BODY: DIE CAST STEEL
PIUSI P5.5:1 940
MEASURE “A” 1210MM • SEAL: NBR
MEASURE “B” 940MM
B
WEIGHT 5,5KG
A

B

Dimensions expressed in millimeters

TECHNICAL DATA
OIL SIDE
WORKING
FLOW RATE PRESSURE AIR CONSUMPTION SUCTION PIPE INLET CONNECTION POLYURETHANE
SEALS
CODE DESCRIPTION FLUIDS TYPE COMPRESSION
RATIO
L/MIN GPM BAR PSI L/MIN MM LENGHT BSP SUCTION OUTLET BSP
MM
BSP
BSP
PIUSI 5.5 ST
F0021401A PIUSI P5.5 ST O 15,5 4,1 5.5:1 3-8 43,5-116 200-250 42 175 F.1/4” F.1” M.1/2” YES
PIUSI 5.5 940
F0021403A PIUSI P5.5 940 O 15,5 4,1 5.5:1 3-8 43,5-116 200-250 42 940 F.1/4” F.1” M.1/2” YES
P5.5:1
*MEASURING MADE WITH PUMP ASSEMBLED OVER DRUM TAKEN FROM 1 METER DISTANCE WITHOUT ANY ENVIROMENTAL NOISES.
PNEUMATIC PISTON PUMPS 29
