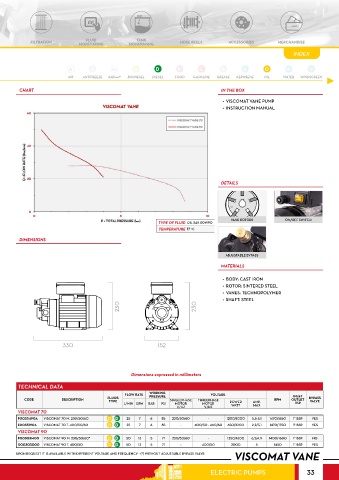

Page 33 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• VISCOMAT VANE PUMP
• INSTRUCTION MANUAL

DETAILS

VANE ROTORS ON/OFF SWITCH
TYPE OF FLUID OIL SAE 80W90
TEMPERATURE 17 °C
DIMENSIONS

ADJUSTABLE BYPASS
MATERIALS
• BODY: CAST IRON
• ROTOR: SINTERED STEEL
• VANES: TECHNOPOLYMER
• SHAFT: STEEL
230 230

330 152

Dimensions expressed in millimeters

TECHNICAL DATA
WORKING
FLOW RATE PRESSURE VOLTAGE INLET
CODE DESCRIPTION FLUIDS SINGLEPHASE THREEPHASE RPM OUTLET BYPASS
VALVE
TYPE
L/MIN GPM BAR PSI MOTOR MOTOR POWER AMP. BSP
WATT
MAX
V./HZ V./HZ
VISCOMAT 70
F0033490A VISCOMAT 70 M. 230/50/60 O D 25 7 6 85 230/50/60 - 1200/1000 5,5-5,1 1470/1650 1” BSP YES
F0033190A VISCOMAT 70 T. 400/50/60 O D 25 7 6 85 - 400/50 - 460/60 650/1000 2,2/3,1 1470/1750 1” BSP YES
VISCOMAT 90
F00303M00 VISCOMAT 90 M. 230/50/60* O D 50 13 5 71 230/50/60 - 1350/1600 6,2/4,9 1400/1600 1” BSP NO
000303000 VISCOMAT 90 T. 400/50 O D 50 13 5 71 - 400/50 2000 5 1450 1” BSP YES
VISCOMAT VANE
UPON REQUEST IT IS AVAILABLE WITH DIFFERENT VOLTAGE AND FREQUENCY - (*) WITHOUT ADJUSTABLE BYPASS VALVE
ELECTRIC PUMPS 33
