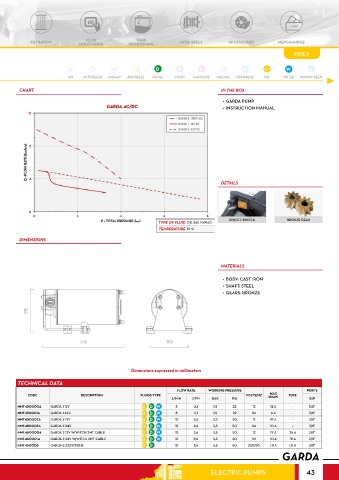

Page 43 - Piusi_Lube
P. 43
FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX
A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN
CHART IN THE BOX
• GARDA PUMP
• INSTRUCTION MANUAL
DETAILS
ON/OFF SWITCH BRONZE GEAR
TYPE OF FLUID OIL SAE 10W40
TEMPERATURE 19 °C
DIMENSIONS
MATERIALS
• BODY: CAST IRON
• SHAFT: STEEL
• GEARS: BRONZE
95
179 80
Dimensions expressed in millimeters
TECHNICAL DATA
FLOW RATE WORKING PRESSURE PORTS
MAX
CODE DESCRIPTION FLUIDS TYPE VOLTS/HZ DRAW FUSE
L/MIN GPM BAR PSI BSP
NMT450000A GARDA 1 12V O D W 8 2,1 1,5 22 12 12 A - 3/8”
NMT450001A GARDA 1 24V O D W 8 2,1 1,5 22 24 6 A - 3/8”
NMT450002A GARDA 2 12V O D W 10 2,6 3,5 50 12 19 A - 3/8”
NMT450003A GARDA 2 24V O D W 10 2,6 3,5 50 24 10 A - 3/8”
NMT460000A GARDA 2 12V W/WITCH 2MT CABLE O D W 10 2,6 3,5 50 12 19 A 25 A 3/8”
NMT460001A GARDA 2 24V W/WITCH 2MT CABLE O D W 10 2,6 3,5 50 24 10 A 15 A 3/8”
NMT450006 GARDA 5 230V/50HZ O D 10 2,6 3,5 50 230/50 1,8 A 1,8 A 3/8”
GARDA
ELECTRIC PUMPS 43
