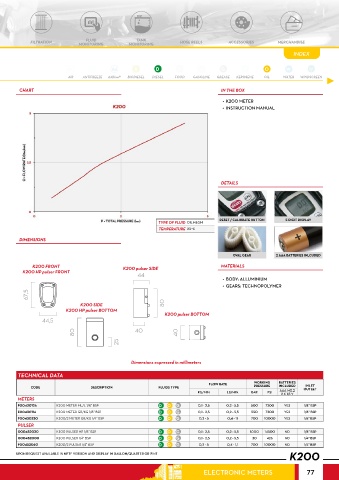

Page 77 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• K200 METER
• INSTRUCTION MANUAL

DETAILS

RESET / CALIBRATE BUTTON 5 DIGIT DISPLAY
TYPE OF FLUID OIL NLGI-1
TEMPERATURE 23 °C
DIMENSIONS

OVAL GEAR 2 AAA BATTERIES INLCUDED
K200 FRONT K200 pulser SIDE MATERIALS
K200 HP pulser FRONT
44
• BODY: ALLUMINIUM
• GEARS: TECHNOPOLYMER
67,5
K200 SIDE 80
K200 HP pulser BOTTOM
K200 pulser BOTTOM
44,5
80 40 40
25

Dimensions expressed in millimeters

TECHNICAL DATA
FLOW RATE WORKING BATTERIES INLET
CODE DESCRIPTION FLUIDS TYPE PRESSURE INCLUDED OUTLET
KG/MIN LB/MIN BAR PSI AAA NO.2
2 X 1,5 V
METERS
F0043012A K200 METER ML/L 1/8” BSP D O R G 0,1 - 2,5 0,2 - 5,5 500 7200 YES 1/8” BSP
F0043011A K200 METER GR/KG 1/8” BSP D O R G 0,1 - 2,5 0,2 - 5,5 550 7200 YES 1/8” BSP
F00430230 K200/2 METER GR/KG 1/4” BSP D O R G 0,2 - 5 0,4 - 11 700 10000 YES 1/4” BSP
PULSER
000452030 K200 PULSER HP 1/8” BSP D O R G 0,1 - 2,5 0,2 - 5,5 1000 14500 NO 1/8” BSP
000452000 K200 PULSER 1/4” BSP D O R G 0,1 - 2,5 0,2 - 5,5 30 426 NO 1/4” BSP
F00452060 K200/2 PULSER 1/4” BSP D O R G 0,2 - 5 0,4 - 1,1 700 10000 NO 1/4” BSP
K200
UPON REQUEST AVAILABLE IN NPTF VERSION AND DISPLAY IN GALLON/QUARTER OR PINT

ELECTRONIC METERS 77
