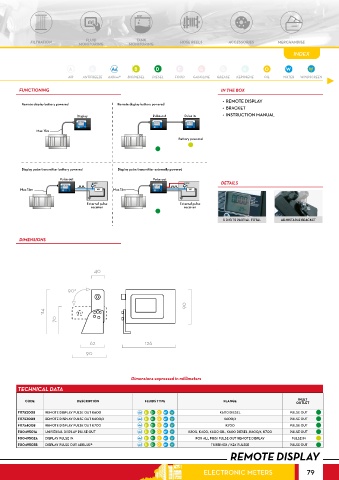

Page 79 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX
FUNCTIONING
• REMOTE DISPLAY
Remote display battery powered Remote display battery powered
• BRACKET
Display Pulse out Pulse in • INSTRUCTION MANUAL

Max 15m
Battery powered

Display pulse transmitter battery powered Display pulse transmitter externally powered
Pulse out Pulse out
DETAILS
Max 15m Max 15m

External pulse External pulse
receiver receiver

5 DIGITS PARTIAL TOTAL ADJUSTABLE BRACKET

DIMENSIONS

MATERIALS
40

90°

90
114
70

62 126

90

Dimensions expressed in millimeters
TECHNICAL DATA

INLET
CODE DESCRIPTION FLUIDS TYPE FLANGE OUTLET
F1175200B REMOTE DISPLAY PULSE OUT K600 Ad B D O W W K600 DIESEL PULSE OUT
S
F1175300B REMOTE DISPLAY PULSE OUT K600/4 Ad B D O W W S K600/4 PULSE OUT
F1175400B REMOTE DISPLAY PULSE OUT K700 Ad B D O W W S K700 PULSE OUT
F0049501A UNIVERSAL DISPLAY PULSE OUT Ad B D O W W K200, K400, K600 OIL, K600 DIESEL, K600/4, K700 PULSE OUT
S
F0049502A DISPLAY PULSE IN Ad B D O W W S FOR ALL PIUSI PULSE OUT REMOTE DISPLAY PULSE IN
F0049503B DISPLAY PULSE OUT ADBLUE® Ad B D O W W S TURBINOX / K24 PULSER PULSE OUT
REMOTE DISPLAY

ELECTRONIC METERS 79
