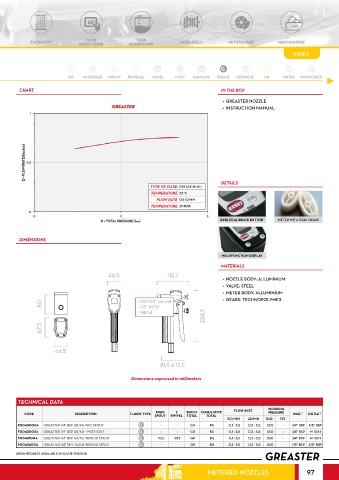

Page 97 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• GREASTER NOZZLE
• INSTRUCTION MANUAL

DETAILS
TYPE OF FLUID GREASE NLGI-1
TEMPERATURE 23 °C
FLOW RATE 0,8 G/MIN
TEMPERATURE 20 BAR

RESET/CALIBRATE BUTTON METER WITH OVAL GEARS

DIMENSIONS

MULTIFUNCTION DISPLAY
MATERIALS
46,5 112,7
• NOZZLE BODY: ALLUMINIUM
• VALVE: STEEL
• METER BODY: ALLUMINIUM

80 - BSP 1/8” conical • GEARS: TECHNOPOLYMER
- 1/8” NPTF
224,3
- M10x1
67,5

44,5

81,5 ± 0,5

Dimensions expressed in millimeters

TECHNICAL DATA

PRESSURE
RIGID
Z
CODE DESCRIPTION FLUIDS TYPE SPOUT SWIVEL BATCH CUMULATIVE FLOW RATE WORKING INLET OUTLET
TOTAL
TOTAL
KG/MIN LB/MIN BAR PSI
R
F0043000A GREASTER 1/4” BSP GR/KG W/O SPOUT G - - GR KG 0,1 - 2,5 0,2 - 5,5 550 - 1/4” BSP 1/8” BSP
R
F0043002A GREASTER 1/4” BSP GR/KG - M10X1 OUT G - - GR KG 0,1 - 2,5 0,2 - 5,5 550 - 1/4” BSP M 10X1
R
F0043100A GREASTER 1/4” BSP GR/KG W/RIGID SPOUT G YES YES GR KG 0,1 - 2,5 0,2 - 5,5 550 - 1/4” BSP M 10X1
F0043600A GREASTER 1/4” NPT OZ/LB W/RIGID SPOUT G - - GR KG 0,1 - 2,5 0,2 - 5,5 550 - 1/8” BSP 1/8” BSP
R
GREASTER
UPON REQUEST AVAILABLE IN OZ/LB VERSION
METERED NOZZLES 97
