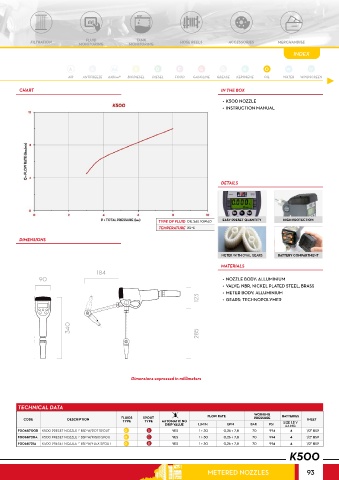

Page 93 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• K500 NOZZLE
• INSTRUCTION MANUAL

DETAILS

TYPE OF FLUID OIL SAE 10W40 EASY PRESET QUANTITY HIGH PROTECTION
TEMPERATURE 23 °C
DIMENSIONS

METER WITH OVAL GEARS BATTERY COMPARTMENT
MATERIALS
184
90 • NOZZLE BODY: ALLUMINIUM
• VALVE: NBR, NICKEL PLATED STEEL, BRASS
• METER BODY: ALLUMINIUM
123 • GEARS: TECHNOPOLYMER

340 285

Dimensions expressed in millimeters

TECHNICAL DATA
WORKING
CODE DESCRIPTION FLUIDS SPOUT AUTOMATIC NO FLOW RATE PRESSURE BATTERIES INLET
TYPE
TYPE
DRIP VALUE L/MIN GPM BAR PSI SIZE 1,5 V
AA NO.
F0068700D K500 PRESET NOZZLE ½” BSP W/ROT SPOUT O A YES 1 � 30 0,26 � 7,8 70 994 4 1/2” BSP
F0068720A K500 PRESET NOZZLE ½” BSP W/RIGID SPOU O C YES 1 � 30 0,26 � 7,8 70 994 4 1/2” BSP
F0068721A K500 PRESET NOZZLE ½” BSP W/FLEX SPOUT O B YES 1 � 30 0,26 � 7,8 70 994 4 1/2” BSP
K500

METERED NOZZLES 93
