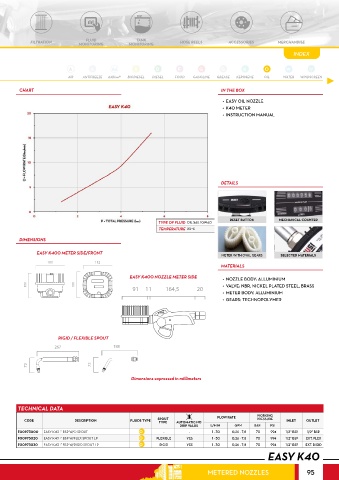

Page 95 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• EASY OIL NOZZLE
• K40 METER
• INSTRUCTION MANUAL

DETAILS

RESET BUTTON MECHANICAL COUNTER
TYPE OF FLUID OIL SAE 10W40
TEMPERATURE 23 °C
DIMENSIONS

EASY K400 METER SIDE/FRONT
METER WITH OVAL GEARS SELECTED MATERIALS
100 112
MATERIALS
EASY K400 NOZZLE METER SIDE • NOZZLE BODY: ALLUMINIUM
100 100 • VALVE: NBR, NICKEL PLATED STEEL, BRASS
91 11 164,5 20
• METER BODY: ALLUMINIUM
• GEARS: TECHNOPOLYMER
100 11 164,5 20

RIGID / FLEXIBLE SPOUT
267 188
70 80

72 72
Dimensions expressed in millimeters

TECHNICAL DATA
PRESSURE
CODE DESCRIPTION FLUIDS TYPE SPOUT AUTOMATIC NO FLOW RATE WORKING INLET OUTLET
TYPE
DRIP VALUE L/MIN GPM BAR PSI
F00973000 EASY K40 ½” BSP W/O SPOUT O - - 1 - 30 0,26 - 7,8 70 994 1/2” BSP 1/2” BSP
F00973020 EASY K40 ½” BSP W/FLEX SPOUT LP O FLEXIBLE YES 1 - 30 0,26 - 7,8 70 994 1/2” BSP EXT. FLEX
F00973030 EASY K40 ½” BSP W/RIGID SPOUT LP O RIGID YES 1 - 30 0,26 - 7,8 70 994 1/2” BSP EXT. RIGID
EASY K40

METERED NOZZLES 95
