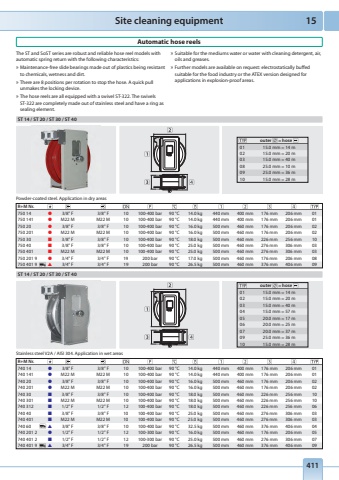

15411Site cleaning equipmentST 14 / ST 20 / ST 30 / ST 40Automatic hose reelsThe ST and SoST series are robust and reliable hose reel models with automatic spring return with the following characteristics:%u00bb Maintenance-free slide bearings made out of plastics being resistant to chemicals, wetness and dirt.%u00bb There are 8 positions per rotation to stop the hose. A quick pull unmakes the locking device.%u00bb The hose reels are all equipped with a swivel ST-322. The swivels ST-322 are completely made out of stainless steel and have a ring as sealing element.%u00bb Suitable for the mediums water or water with cleaning detergent, air, oils and greases. %u00bb Further models are available on request: electrostatically buffed suitable for the food industry or the ATEX version designed for applications in explosion-proof areas.Powder-coated steel. Application in dry areasStainless steel V2A / AISI 304. Application in wet areasouter = hose 01 15.0 mm = 14 m 02 15.0 mm = 20 m 03 15.0 mm = 40 m 08 25.0 mm = 10 m 09 25.0 mm = 36 m 10 15.0 mm = 28 mouter = hose 01 15.0 mm = 14 m 02 15.0 mm = 20 m 03 15.0 mm = 40 m 04 15.0 mm = 57 m 05 20.0 mm = 17 m 06 20.0 mm = 25 m 07 20.0 mm = 37 m 09 25.0 mm = 36 m 10 15.0 mm = 28 mR+M Nr.750 14 %u25cf 3/8\3/8\10 100-400 bar 90 %u00b0C 14.0 kg 440 mm 400 mm 176 mm 206 mm 01750 141 %u25cf M22 M M22 M 10 100-400 bar 90 %u00b0C 14.0 kg 440 mm 400 mm 176 mm 206 mm 01750 20 %u25cf 3/8\3/8\10 100-400 bar 90 %u00b0C 16.0 kg 500 mm 460 mm 176 mm 206 mm 02750 201 %u25cf M22 M M22 M 10 100-400 bar 90 %u00b0C 16.0 kg 500 mm 460 mm 176 mm 206 mm 02750 30 %u25a0 3/8\3/8\10 100-400 bar 90 %u00b0C 18.0 kg 500 mm 460 mm 226 mm 256 mm 10750 40 %u25a0 3/8\3/8\10 100-400 bar 90 %u00b0C 25.0 kg 500 mm 460 mm 276 mm 306 mm 03750 401 %u25a0 M22 M M22 M 10 100-400 bar 90 %u00b0C 25.0 kg 500 mm 460 mm 276 mm 306 mm 03750 201 9 %u25cf 3/4\3/4\19 200 bar 90 %u00b0C 17.0 kg 500 mm 460 mm 176 mm 206 mm 08750 401 9 %u25b2 3/4\3/4\19 200 bar 90 %u00b0C 26.5 kg 500 mm 460 mm 376 mm 406 mm 09R+M Nr.740 14 %u25cf 3/8\3/8\10 100-400 bar 90 %u00b0C 14.0 kg 440 mm 400 mm 176 mm 206 mm 01740 141 %u25cf M22 M M22 M 10 100-400 bar 90 %u00b0C 14.0 kg 440 mm 400 mm 176 mm 206 mm 01740 20 %u25cf 3/8\3/8\10 100-400 bar 90 %u00b0C 16.0 kg 500 mm 460 mm 176 mm 206 mm 02740 201 %u25cf M22 M M22 M 10 100-400 bar 90 %u00b0C 16.0 kg 500 mm 460 mm 176 mm 206 mm 02740 30 %u25a0 3/8\3/8\10 100-400 bar 90 %u00b0C 18.0 kg 500 mm 460 mm 226 mm 256 mm 10740 301 %u25a0 M22 M M22 M 10 100-400 bar 90 %u00b0C 18.0 kg 500 mm 460 mm 226 mm 256 mm 10740 312 %u25a0 1/2\1/2\12 100-400 bar 90 %u00b0C 18.0 kg 500 mm 460 mm 226 mm 256 mm 06740 40 %u25a0 3/8\3/8\10 100-400 bar 90 %u00b0C 25.0 kg 500 mm 460 mm 276 mm 306 mm 03740 401 %u25a0 M22 M M22 M 10 100-400 bar 90 %u00b0C 25.0 kg 500 mm 460 mm 276 mm 306 mm 03740 60 %u25b2 3/8\3/8\10 100-400 bar 90 %u00b0C 32.5 kg 500 mm 460 mm 376 mm 406 mm 04740 201 2 %u25cf 1/2\1/2\12 100-300 bar 90 %u00b0C 16.0 kg 500 mm 460 mm 176 mm 206 mm 05740 401 2 %u25a0 1/2\1/2\12 100-300 bar 90 %u00b0C 25.0 kg 500 mm 460 mm 276 mm 306 mm 07740 401 9 %u25b2 3/4\3/4\19 200 bar 90 %u00b0C 26.5 kg 500 mm 460 mm 376 mm 406 mm 09ST 14 / ST 20 / ST 30 / ST 40
