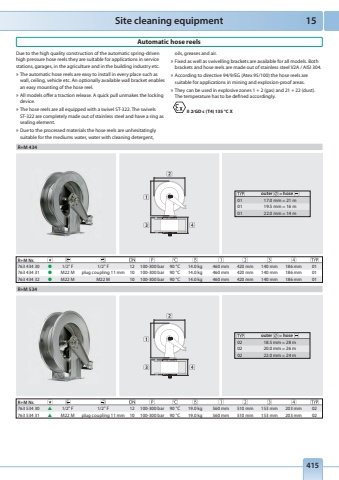

15415Site cleaning equipmentR+M 434R+M 534Automatic hose reelsDue to the high quality construction of the automatic spring-driven high pressure hose reels they are suitable for applications in service stations, garages, in the agriculture and in the building industry etc.%u00bb The automatic hose reels are easy to install in every place such as wall, ceiling, vehicle etc. An optionally available wall bracket enables an easy mounting of the hose reel.%u00bb All models offer a traction release. A quick pull unmakes the locking device.%u00bb The hose reels are all equipped with a swivel ST-322. The swivels ST-322 are completely made out of stainless steel and have a ring as sealing element.%u00bb Due to the processed materials the hose reels are unhesitatingly suitable for the mediums water, water with cleaning detergent, oils, greases and air.%u00bb Fixed as well as swivelling brackets are available for all models. Both brackets and hose reels are made out of stainless steel V2A / AISI 304.%u00bb According to directive 94/9/EG (Atex 95/100) the hose reels are suitable for applications in mining and explosion-proof areas.%u00bb They can be used in explosive zones 1 + 2 (gas) and 21 + 22 (dust). The temperature has to be defined accordingly. II 2%u2044 GD c (T4) 135 %u00b0C XR+M Nr.763 434 30 %u25cf 1/2\1/2\12 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 01763 434 31 %u25cf M22 M plug coupling 11 mm 10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 01763 434 32 %u25cf M22 M M22 M 10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 01R+M Nr.763 534 30 %u25b2 1/2\1/2\12 100-300 bar 90 %u00b0C 19.0 kg 560 mm 510 mm 153 mm 203 mm 02763 534 31 %u25b2 M22 M plug coupling 11 mm 10 100-300 bar 90 %u00b0C 19.0 kg 560 mm 510 mm 153 mm 203 mm 02outer = hose 01 17.0 mm = 21 m 01 19.5 mm = 16 m 01 22.0 mm = 14 mouter = hose 02 18.5 mm = 28 m 02 20.0 mm = 26 m 02 22.0 mm = 24 m
