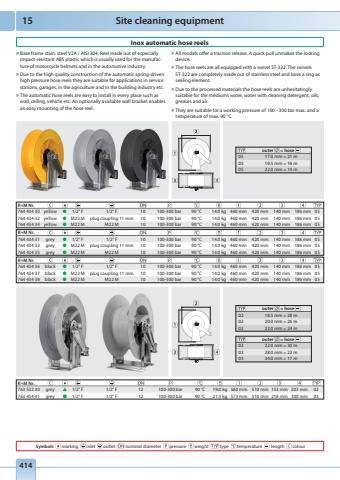

15414Site cleaning equipmentInox automatic hose reels%u00bb Base frame stain. steel V2A / AISI 304. Reel made out of especially impact-resistant ABS plastic which is usually used for the manufacture of motorcycle helmets and in the automotive industry.%u00bb Due to the high quality construction of the automatic spring-driven high pressure hose reels they are suitable for applications in service stations, garages, in the agriculture and in the building industry etc.%u00bb The automatic hose reels are easy to install in every place such as wall, ceiling, vehicle etc. An optionally available wall bracket enables an easy mounting of the hose reel.%u00bb All models offer a traction release. A quick pull unmakes the locking device.%u00bb The hose reels are all equipped with a swivel ST-322. The swivels ST-322 are completely made out of stainless steel and have a ring as sealing element.%u00bb Due to the processed materials the hose reels are unhesitatingly suitable for the mediums water, water with cleaning detergent, oils, greases and air.%u00bb They are suitable for a working pressure of 100 - 300 bar max. and a temperature of max. 90 %u00b0C.R+M Nr.764 434 30 yellow %u25cf 1/2\1/2\10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 05764 434 32 yellow %u25cf M22 M plug coupling 11 mm 10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 05764 434 34 yellow %u25cf M22 M M22 M 10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 05R+M Nr.764 434 31 grey %u25cf 1/2\1/2\10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 05764 434 33 grey %u25cf M22 M plug coupling 11 mm 10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 05764 434 35 grey %u25cf M22 M M22 M 10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 05R+M Nr.764 434 36 black %u25cf 1/2\1/2\10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 05764 434 37 black %u25cf M22 M plug coupling 11 mm 10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 05764 434 38 black %u25cf M22 M M22 M 10 100-300 bar 90 %u00b0C 14.0 kg 460 mm 420 mm 140 mm 186 mm 05outer = hose 05 17.0 mm = 21 m 05 19.5 mm = 16 m 05 22.0 mm = 14 mSymbols marking inlet outlet nominal diameter pressure weight type temperature length colourR+M Nr.763 532 30 grey %u25b2 1/2\1/2\12 100-300 bar 90 %u00b0C 19.0 kg 560 mm 510 mm 153 mm 203 mm 02763 454 41 grey %u25a0 1/2\1/2\12 100-300 bar 90 %u00b0C 21.5 kg 573 mm 510 mm 218 mm 300 mm 03 outer = hose 02 18.5 mm = 28 m 02 20.0 mm = 26 m 02 22.0 mm = 24 mouter = hose 03 22.0 mm = 30 m 03 28.0 mm = 22 m 03 34.0 mm = 17 m
