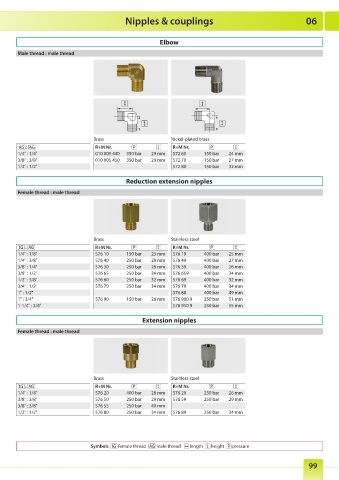

Page 100 - RM_2022

Nipples & couplings 06

Elbow
Male thread : male thread

Brass Nickel-plated brass
: R+M Nr. R+M Nr.
1/4" : 1/4" 010 005 440 350 bar 29 mm 572 60 150 bar 24 mm
3/8" : 3/8" 010 005 450 350 bar 29 mm 572 70 150 bar 27 mm
1/2" : 1/2" 572 80 150 bar 32 mm

Reduction extension nipples

Female thread : male thread

Brass Stainless steel
: R+M Nr. R+M Nr.
1/4" : 1/8" 576 10 150 bar 25 mm 576 19 400 bar 25 mm
1/4" : 3/8" 576 40 250 bar 29 mm 576 49 400 bar 27 mm
3/8" : 1/4" 576 30 250 bar 26 mm 576 39 400 bar 26 mm
3/8" : 1/2" 576 65 250 bar 34 mm 576 659 400 bar 34 mm
1/2" : 3/8" 576 60 250 bar 32 mm 576 69 400 bar 32 mm
3/4" : 1/2" 576 70 250 bar 34 mm 576 79 400 bar 34 mm
1" : 1/2" 576 88 400 bar 49 mm
1" : 3/4" 576 90 150 bar 26 mm 576 900 9 250 bar 51 mm
1-1/4" : 3/4" 576 910 9 250 bar 55 mm

Extension nipples
Female thread : male thread

Brass Stainless steel
: R+M Nr. R+M Nr.
1/4" : 1/4" 576 20 400 bar 28 mm 576 29 250 bar 26 mm
3/8" : 3/8" 576 50 250 bar 29 mm 576 59 250 bar 29 mm
3/8" : 3/8" 576 55 250 bar 40 mm
1/2" : 1/2" 576 80 250 bar 34 mm 576 89 250 bar 34 mm

Symbols female thread male thread length height pressure

99
