P. 107

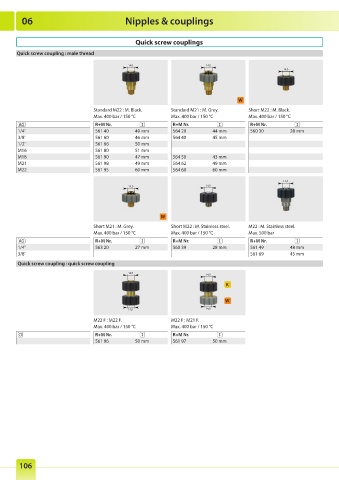

06 Nipples & couplings
Quick screw couplings
Quick screw coupling : male thread
14,0 14,0
14,0
W
Standard M22 : M. Black. Standard M21 : M. Grey. Short M22 : M. Black.
Max. 400 bar / 150 °C Max. 400 bar / 150 °C Max. 400 bar / 150 °C
R+M Nr. R+M Nr. R+M Nr.
1/4" 561 40 49 mm 564 20 44 mm 560 30 28 mm
3/8" 561 60 46 mm 564 40 45 mm
1/2" 561 66 50 mm
M16 561 80 51 mm
M18 561 90 47 mm 564 50 43 mm
M21 561 98 49 mm 564 62 49 mm
M22 561 95 60 mm 564 60 60 mm
14,0
14,0 14,0
W
Short M21 : M. Grey. Short M22 : M. Stainless steel. M22 : M. Stainless steel.
Max. 400 bar / 150 °C Max. 400 bar / 150 °C Max. 500 bar
R+M Nr. R+M Nr. R+M Nr.
1/4" 563 20 27 mm 560 39 28 mm 561 49 48 mm
3/8" 561 69 45 mm
Quick screw coupling : quick screw coupling
14,0
14,0
K
W
14,0 14,0
M22 F : M22 F. M22 F : M21 F.
Max. 400 bar / 150 °C Max. 400 bar / 150 °C
R+M Nr. R+M Nr.
561 96 50 mm 561 97 50 mm
106
