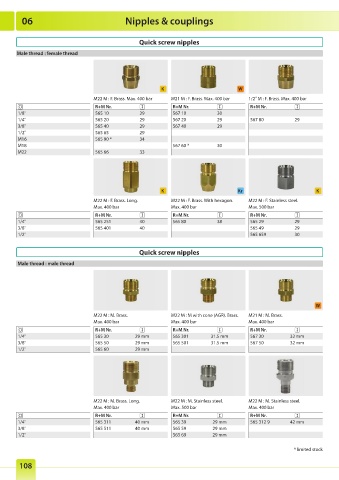

Page 109 - RM_2022

06 Nipples & couplings

Quick screw nipples
Male thread : female thread

K W
M22 M : F. Brass. Max. 400 bar M21 M : F. Brass. Max. 400 bar 1/2" M : F. Brass. Max. 400 bar
R+M Nr. R+M Nr. R+M Nr.
1/8" 565 10 29 567 10 30
1/4" 565 20 29 567 20 29 567 80 29
3/8" 565 40 29 567 40 29
1/2" 565 65 29
M16 565 90 * 34
M18 567 60 * 30
M22 565 66 33

K Kr K

M22 M : F. Brass. Long. M22 M : F. Brass. With hexagon. M22 M : F. Stainless steel.
Max. 400 bar Max. 400 bar Max. 500 bar
R+M Nr. R+M Nr. R+M Nr.
1/4" 565 251 40 565 80 38 565 29 29
3/8" 565 401 40 565 49 29
1/2" 565 659 30

Quick screw nipples
Male thread : male thread

W
M22 M : M. Brass. M22 M : M with cone (AGR). Brass. M21 M : M. Brass.
Max. 400 bar Max. 400 bar Max. 400 bar
R+M Nr. R+M Nr. R+M Nr.
1/4" 565 30 29 mm 565 301 31.5 mm 567 30 32 mm
3/8" 565 50 29 mm 565 501 31.5 mm 567 50 32 mm
1/2" 565 60 29 mm

M22 M : M. Brass. Long. M22 M : M. Stainless steel. M22 M : M. Stainless steel.
Max. 400 bar Max. 500 bar Max. 400 bar
R+M Nr. R+M Nr. R+M Nr.
1/4" 565 311 40 mm 565 39 29 mm 565 312 9 42 mm
3/8" 565 511 40 mm 565 59 29 mm
1/2" 565 69 29 mm

* limited stock

108
