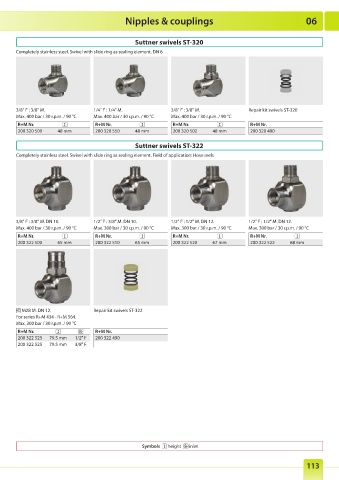

Page 114 - RM_2022

Nipples & couplings 06

Suttner swivels ST-320
Completely stainless steel. Swivel with slide ring as sealing element. DN 6

3/8" F : 3/8" M. 1/4" F : 1/4" M. 3/8" F : 3/8" M. Repair kit swivels ST-320
Max. 400 bar / 30 r.p.m. / 90 °C Max. 400 bar / 30 r.p.m. / 90 °C Max. 400 bar / 30 r.p.m. / 90 °C
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 320 500 48 mm 200 320 550 48 mm 200 320 502 48 mm 200 320 490

Suttner swivels ST-322

Completely stainless steel. Swivel with slide ring as sealing element. Field of application: Hose reels

3/8" F : 3/8" M. DN 10. 1/2" F : 3/8" M. DN 10. 1/2" F : 1/2" M. DN 12. 1/2" F : 1/2" M. DN 12.
Max. 400 bar / 30 r.p.m. / 90 °C Max. 300 bar / 30 r.p.m. / 90 °C Max. 300 bar / 30 r.p.m. / 90 °C Max. 300 bar / 30 r.p.m. / 90 °C
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 322 500 65 mm 200 322 510 65 mm 200 322 520 67 mm 200 322 522 68 mm

M28 M. DN 12. Repair kit swivels ST-322
For series R+M 434 - R+M 564.
Max. 300 bar / 30 r.p.m. / 90 °C
R+M Nr. R+M Nr.
200 322 523 79.5 mm 1/2" F 200 322 490
200 322 525 79.5 mm 3/8" F

Symbols height inlet
