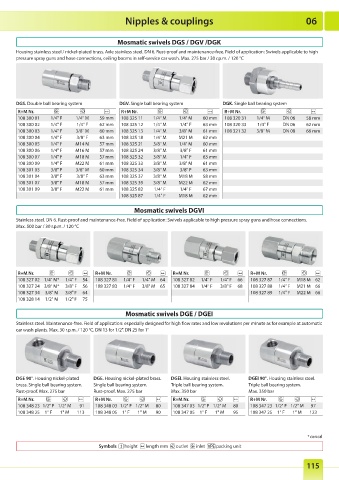

Page 116 - RM_2022

Nipples & couplings 06

Mosmatic swivels DGS / DGV /DGK
Housing stainless steel / nickel-plated brass. Axle stainless steel. DN 6. Rust-proof and maintenance-free. Field of application: Swivels applicable to high
pressure spray guns and hose connections, ceiling booms in self-service car wash. Max. 275 bar / 30 r.p.m. / 120 °C

DGS. Double ball bearing system DGV. Single ball bearing system DGK. Single ball bearing system
R+M Nr. R+M Nr. R+M Nr.
108 300 01 1/4" F 1/4" M 59 mm 108 325 11 1/4" M 1/4" M 60 mm 108 320 31 1/4" M DN 06 58 mm
108 300 02 1/4" F 1/4" F 62 mm 108 325 12 1/4" M 1/4" F 63 mm 108 320 33 1/4" F DN 06 62 mm
108 300 03 1/4" F 3/8" M 60 mm 108 325 13 1/4" M 3/8" M 61 mm 108 321 32 3/8" M DN 08 66 mm
108 300 04 1/4" F 3/8" F 63 mm 108 325 18 1/4" M M21 M 62 mm
108 300 05 1/4" F M14 M 57 mm 108 325 21 3/8" M 1/4" M 60 mm
108 300 06 1/4" F M16 M 57 mm 108 325 24 3/8" M 3/8" F 61 mm
108 300 07 1/4" F M18 M 57 mm 108 325 32 3/8" M 1/4" F 63 mm
108 300 09 1/4" F M22 M 61 mm 108 325 33 3/8" M 3/8" M 61 mm
108 301 03 3/8" F 3/8" M 60 mm 108 325 34 3/8" M 3/8" F 63 mm
108 301 04 3/8" F 3/8" F 63 mm 108 325 37 3/8" M M18 M 58 mm
108 301 07 3/8" F M18 M 57 mm 108 325 39 3/8" M M22 M 62 mm
108 301 09 3/8" F M22 M 61 mm 108 325 82 1/4" F 1/4" F 67 mm
108 325 87 1/4" F M18 M 62 mm

Mosmatic swivels DGVI
Stainless steel. DN 6. Rust-proof and maintenance-free. Field of application: Swivels applicable to high pressure spray guns and hose connections.
Max. 500 bar / 30 r.p.m. / 120 °C

R+M Nr. R+M Nr. R+M Nr. R+M Nr.
108 327 02 1/4" M* 1/4" F 54 108 327 81 1/4" F 1/4" M 64 108 327 82 1/4" F 1/4" F 66 108 327 87 1/4" F M18 M 62
108 327 24 3/8" M* 3/8" F 56 108 327 83 1/4" F 3/8" M 65 108 327 84 1/4" F 3/8" F 68 108 327 88 1/4" F M21 M 66
108 327 34 3/8" M 3/8" F 64 108 327 89 1/4" F M22 M 66
108 328 14 1/2" M 1/2" F 75

Mosmatic swivels DGE / DGEI
Stainless steel. Maintenance-free. Field of application: especially designed for high flow rates and low revolutions per minute as for example at automatic
car wash plants. Max. 30 r.p.m. / 120 °C. DN 13 for 1/2". DN 25 for 1"

DGE 90°. Housing nickel-plated DGE. Housing nickel-plated brass. DGEI. Housing stainless steel. DGEI 90°. Housing stainless steel.
brass. Single ball bearing system. Single ball bearing system. Triple ball bearing system. Triple ball bearing system.
Rust-proof. Max. 275 bar Rust-proof. Max. 275 bar Max. 350 bar Max. 350 bar
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
108 348 23 1/2" F 1/2" M 91 108 348 03 1/2" F 1/2" M 80 108 347 03 1/2" F 1/2" M 80 108 347 23 1/2" F 1/2" M 97
108 348 25 1" F 1" M 113 108 348 05 1" F 1" M 90 108 347 05 1" F 1" M 95 108 347 25 1" F 1" M 123

* conical
Symbols height length mm outlet inlet packing unit
