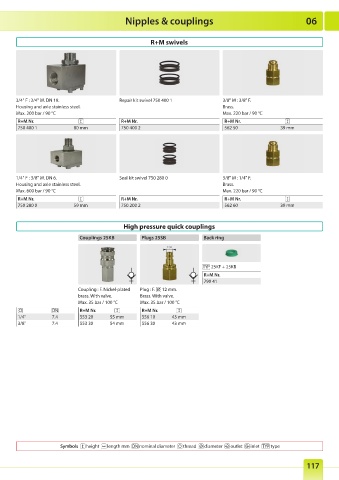

Page 118 - RM_2022

Nipples & couplings 06

R+M swivels

3/4" F : 3/4" M. DN 19. Repair kit swivel 750 400 1 3/8" M : 3/8" F.
Housing and axle stainless steel. Brass.
Max. 200 bar / 90 °C Max. 220 bar / 90 °C
R+M Nr. R+M Nr. R+M Nr.
750 400 1 80 mm 750 400 2 562 50 39 mm

1/4" F : 3/8" M. DN 6. Seal kit swivel 750 280 0 3/8" M : 1/4" F.
Housing and axle stainless steel. Brass.
Max. 600 bar / 90 °C Max. 220 bar / 90 °C
R+M Nr. R+M Nr. R+M Nr.
750 280 0 59 mm 750 200 2 562 60 39 mm

High pressure quick couplings

Couplings 25KB Plugs 25SB Back ring
12,0

25KF + 25KB
R+M Nr.
790 41
Coupling : F. Nickel-plated Plug : F. 12 mm.
brass. With valve. Brass. With valve.
Max. 35 bar / 100 °C Max. 35 bar / 100 °C
R+M Nr. R+M Nr.
1/4" 7.4 553 20 55 mm 556 10 43 mm
3/8" 7.4 553 30 54 mm 556 30 43 mm

Symbols height length mm nominal diameter thread diameter outlet inlet type

117
